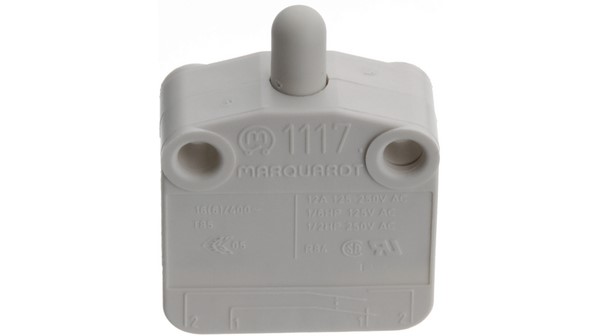

1117.0206 by marquardt switches
Image is representational - see manufacturer specifications
Marquardt Switches Authorized Distributor

1117.0206

Switch - Snap Action - N.C. - SPST - Plunger - Quick Connect - 16A - 400VAC - 372.85VA - 3.5N - Screw Mount

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 1117.0206 is a 1-pole snap-action Micro Switch with double interrupting jump contact switching system, NO contact type. Made of PA glass fibre-reinforced actuator and housing, silver-plated terminal and Ag contact.

Search Keywords: 11170206

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Marquardt Switches
Part No:
1117.0206
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
TN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Mounting:
Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.C.
Actuator Material/Style:
Glass Fiber/Polyamide/Plunger
Contact Rating @ Voltage:
372.85 A
Maximum Movement Differential:
2.6 mm
Operating Force:
3.5 N
Termination Style:
Quick Connect
Dimension:
30 x 13 x 40.7 mm
Body Orientation:
Straight
IP Rating:
IP40

IN STOCK: 526

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
5
$4.19
50
$3.92
100
$3.84
300
$3.72
500
$2.96
1,000
$2.78
2,500 +
$2.53
Supplier's Standard Package
Log in for special pricing
