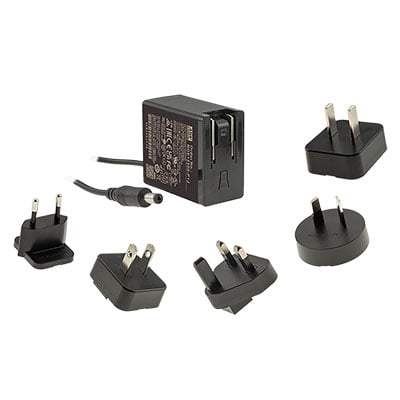

Name: GEM12I18-P1J
Brand: Mean Well
SKU: 49511671
Availability: OutOfStock

Products found: 0

Supplier:

MEAN WELL

Part No:

GEM12I18-P1J

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8504409510

COO:

Tw

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

1

Input/Output Type:

AC/DC

Type:

Regulated-Switching

Style:

Interchangeable WallMount

Output Type:

Fixed

Number of Outputs:

1

Power:

12 W

Output Voltage:

18 VDC

Output Current:

0.66 A

Ripple & Noise:

80 mV

Grade:

Medical

MOPP:

2X

DOE Efficiency Level:

VI

CoC Tier:

No

Safety Class:

II

Safety Approvals:

CE, cRUus, GS, TUV

Efficiency:

85(Typ) %

Output Connector Type:

Barrel - Female

Output Connector Polarity:

Center Positive

Output Connector Diameters:

2.1x5.5 mm

Output Connector Angle:

Straight

Output Cord Length:

1.8m (70.9in)

AC Input Voltage:

80 to 264

Minimum AC Input Voltage:

80

Maximum AC Input Voltage:

264

Input Frequency:

47 to 63 Hz

Line Regulation:

1.00 %

Load Regulation:

3.00 %

Overload Protection:

Yes

Over Voltage Protection:

Yes

Short Circuit Protection:

Yes

Thermal Protection:

No

Operating Temperature:

-20 to 70 °C

Power Indicator:

No

Minimum Load (Amps):

0

Minimum Isolation Voltage:

5656 VDC

Input Connector Type:

Interchangeable-Order Separately

Dimensions L x W x H:

73.9 x 39.0 x 48.5 mm

Dimensions L x W x H(in):

2.91 x 1.54 x 1.91 in

Life Cycle:

Discontinued & Replaced
