LDD-700H by mean well

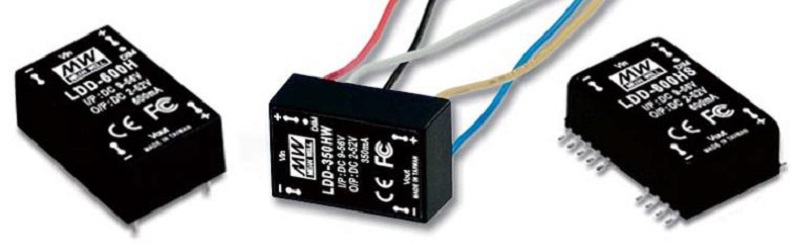

Image is representational - see mfr. specs

LDD-700H

MEAN WELL

DC/DC Step down LED driver Constant Current (CC) - Input 9-56Vdc - Output 0.7A at 2-52VDC - PCB mount through hole - Dimming with PWM and remote ON/OFF. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

LDD-700H is DC/DC step-down converter with output voltage from 2 to 52VDC at fixed current 700mA. In this converter is built-in EMI filter, comply with EN55015 and FCC part 15 without additional input filter and capacitors. LDD-H series are cooling by free air converction and has short circuit and over temperature protection. LDD-700H has a 3 year factory warranty.

Search Keywords: LDD700H

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
MEAN WELL
Part No:
LDD-700H
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504409580
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input/Output Type:
DC/DC
Style:
Module
Type:
Constant Current
Output Type:
Fixed, Dimmable
Dimming:
PWM
Maximum Output Power:
Not Specified
Output Voltage Range:
2 to 52 VDC
Maximum Output Current:
700 mA (0.7 A)
Minimum AC Input Voltage:
Not App
Maximum AC Input Voltage:
Not App
Minimum DC Input Voltage:
9
Maximum DC Input Voltage:
56
Termination Style:
Pin
Input Connector Type:
PC Pins
Output Connector Type:
PC Pins
Operating Temperature:
-40 to 85 °C
Safety Agency Approvals:
CE, EAC
IEC Class:
None
SELV:
No
LPS:
No
Warranty:
3 Years
Family:
LDD-700
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 1

Ships today, if you order in

Buy all 1 in-stock or the regular minimum order quantity of 3

Stock lot only: 1

Minimum Order Quantity: 3

Price (USD)

Qty
Unit Price
1
$11.772
3
$10.702
10
$8.292
20
$7.272
50 +
$6.716
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

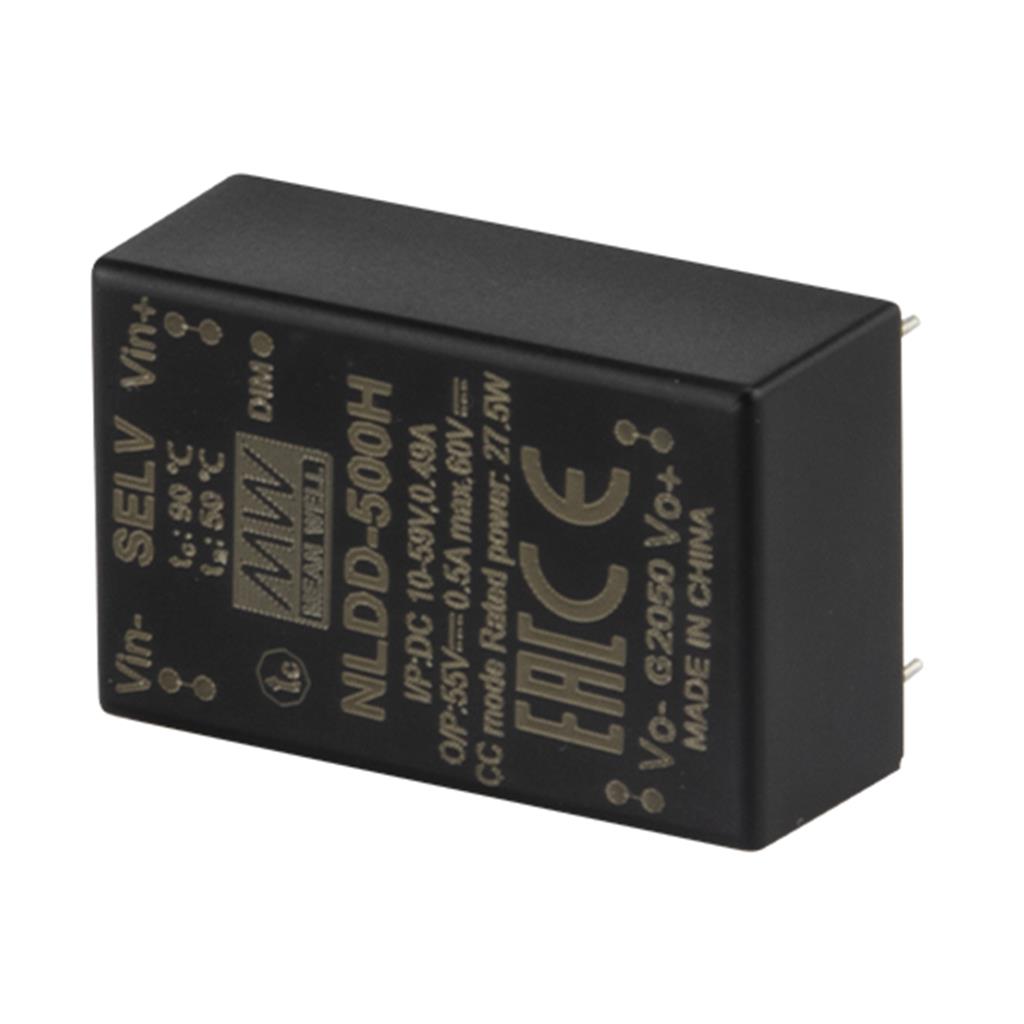

RECOMMENDED REPLACEMENT
NLDD-700H
NLDD-700H
