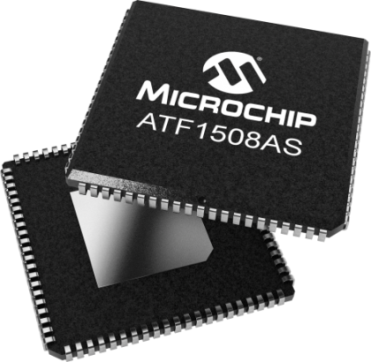

ATF1508AS-10JU84 by microchip technology

ATF1508AS-10JU84

Microchip Technology

CPLD ATF1500 Family 3K Gates 128 Macro Cells 100MHz 5V 84-Pin PLCC Tube ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
This product may require extra documentation. Shipping may be delayed 1-2 days.

DESCRIPTION

The ATF1508AS-10JU84 is part of the ATF1500 Family of Complex Programmable Logic Devices (CPLDs) manufactured by Microchip Technology. This specific model features a capacity of 3,000 gates and 128 macro cells, making it a suitable choice for medium-sized digital logic designs.Operating at a maximum frequency of 100MHz, the ATF1508AS-10JU84 offers reliable performance in various applications. It operates at a voltage of 5V, providing compatibility with a wide range of electronic systems.Packaged in an 84-pin PLCC tube, this CPLD is designed for easy integration onto printed circuit boards (PCBs). The tube packaging ensures secure transportation and protection during shipping.With its versatility, capacity, and reliable performance, the ATF1508AS-10JU84 is an ideal choice for engineers and designers looking for a robust and efficient solution for implementing digital logic designs.

Search Keywords: ATF1508AS10JU84

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
ATF1508AS-10JU84
RoHS:
Yes
HTS:
8542310055
COO:
PH
ECCN:
3A991.A.2
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
15
Package Type:
TUBE
Data Gate:
No
Dimension:
29.41(Max) x 29.41(Max) x 3.68(Min) mm
Device Logic Cells:
N/A
Device System Gates:
3000
Clock Management:
N/A
  Different packaging options available.  See Alternatives

IN STOCK: 75

Can Ship immediately

Manufacturer Stock: 1,223   can ship 12/5/25

Minimum Order: 15

Multiple: 15

Factory Lead-Time 12 Weeks can ship 2/12/26

Price (CAD)

Qty
Unit Price
15
$19.846
30
$18.713
60
$18.254
105
$17.809
255 +
$17.732
Suppliers Standard Package
