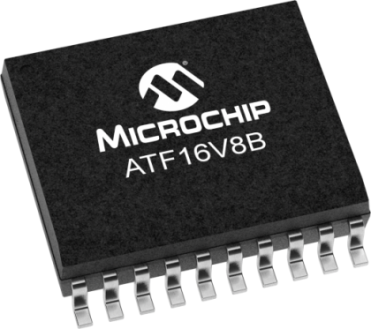

ATF16V8B-15SU by microchip technology

ATF16V8B-15SU

Microchip Technology

SPLD ATF16V8B Family 250 Gates 8 Macro Cells 62MHz 5V 20-Pin SOIC W Tube ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ATF16V8B-15SU is a versatile SPLD (Simple Programmable Logic Device) from the ATF16V8B family, designed to provide efficient logic functions with its 8 macro cells and 250 gates. This device operates at a clock frequency of up to 62MHz and provides a reliable 5V power supply, making it suitable for a wide range of applications. With a compact 20-pin SOIC package and tube packaging, it ensures easy integration into various circuit boards.

Search Keywords: ATF16V8B15SU

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
ATF16V8B-15SU
RoHS:
Yes
HTS:
8542310055
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
37
Package Type:
TUBE
Maximum Number of User I/Os:
8
Family Name:
ATF16V8B
Family:
ATF16V8B
Fabrication Technology:
N/A
Dimension:
13(Max) x 7.6(Max) x 2.35(Max) mm
Device System Gates:
250
Maximum Operating Current:
55(Typ) mA
In-System Programmability:
No
Maximum Internal Frequency:
62 MHz
Maximum Operating Supply Voltage:
5.5 V
  Different packaging options available.  See Alternatives

IN STOCK: 1,628

Can Ship immediately

Manufacturer Stock: 3,658   can ship 12/1/25

Minimum Order: 37

Multiple: 37

Factory Lead-Time 16 Weeks can ship 3/12/26

Price (USD)

Qty
Unit Price
37
$1.030
259
$0.946
518
$0.931
1,036
$0.896
2,516
$0.852
5,032
$0.839
7,511 +
$0.827
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
