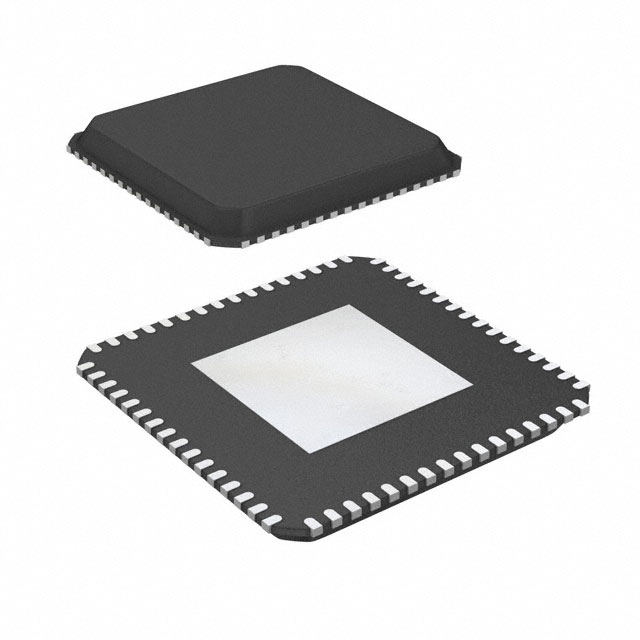

LAN9514-JZX by microchip technology

LAN9514-JZX

Microchip Technology

Ethernet Controller - 100 Mbps - IEEE 802.3 - IEEE 802.3u - 3 V - 3.6 V - QFN 64 Pins. ...

Datasheet
RoHS Compliant
TRAY Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The LAN9514-JZX is an USB 2.0 hub and 10/100 Ethernet Controller. The LAN9514 is specifically designed to provide system architects with a low-cost, power-efficient, small-footprint USB to Ethernet and multi-port USB connectivity solution. This contains a high speed USB 2.0 hub with four fully-integrated downstream USB 2.0 PHYs, an integrated upstream USB 2.0 PHY, a 10/100 Ethernet MAC/PHY controller and an EEPROM controller. It offers Microchips highest level of USB 2.0 and 10/100 Ethernet compliance and interoperability. Additionally, this device simplifies system design by leveraging the existing USB stack and reducing the PCB footprint by up to 65% compared to discrete competitive solutions. USB-based networking technology offers a cost-effective and smart design alternative to traditional PCI/PCI-Express networking solutions due to the flexibility of routing and placement of Ethernet and USB connectivity ports.

Search Keywords: LAN9514JZX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
LAN9514-JZX
RoHS:
Yes
HTS:
8542310030
COO:
SG
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
260
Package Type:
TRAY
Category:
Single Chip
Communication Mode:
Full Duplex,Half Duplex
Data Rate:
10,100 Mbps
Auto-Negotiation:
Yes
Dimension:
9 x 9 x 0.83 mm
  Different packaging options available.  See Alternatives

IN STOCK: 2,125

Can Ship immediately

Minimum Order: 5

Factory Lead-Time 7 Weeks

Price (CAD)

Qty
Unit Price
5
$11.669
25
$9.356
50
$9.249
100
$8.376
260
$8.346
520 +
$8.300
Suppliers Standard Package
