MCP14628-E/MF by microchip technology

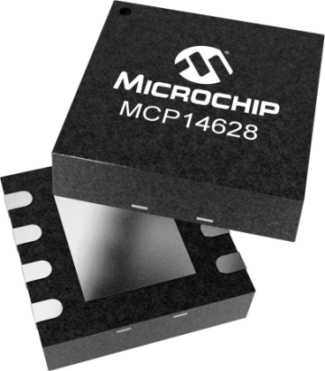

Image is representational - see mfr. specs

MCP14628-E/MF

Microchip Technology

The MCP14628-E/MF is a 2A dual output MOSFET gate driver designed for synchronous buck converter applications. ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MCP14628-E/MF is a dual MOSFET gate driver designed to optimally drive two N-Channel MOSFETs in a non-isolated synchronous buck converter topology. It features a high peak output current of 2A (typical) for both high-side and low-side drives, with a low-side sink capability of 3.5A (typical). The driver includes adaptive cross-conduction protection, an internal bootstrap blocking device, and a tri-state PWM pin for power stage shutdown. This specific part comes in an 8-Lead 3x3mm DFN package and supports an operating temperature range of -40°C to +85°C. Its features make it ideal for high-efficiency synchronous DC/DC buck converters, high-current low-voltage converters, and core voltage supplies for microprocessors.

Search Keywords: MCP14628EMF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MCP14628-E/MF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
PH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
120
Package Type:
TUBE
Driver Type:
High and Low Side
Absolute Propagation Delay Time:
30 ns
Dimension:
3 x 3 x 0.88 mm
Driver Configuration:
Inverting,Non-Inverting
Bridge Type:
N/A

IN STOCK: 0

On Order: 360   can ship 6/10/26

Minimum Order Quantity: 120

Multiple: 120

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
120
$1.61
360
$1.55
600
$1.52
1,080
$1.45
2,520
$1.43
5,040 +
$1.41
