MCP2544WFDT-E/SN by microchip technology

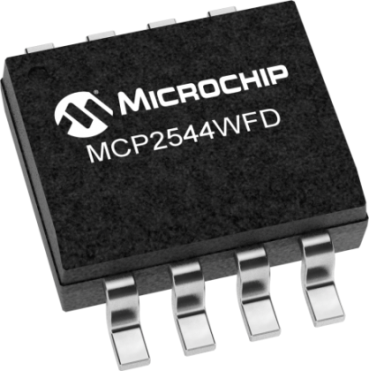

Image is representational - see mfr. specs

MCP2544WFDT-E/SN

Microchip Technology

The MCP2544WFDT-E/SN is a high-speed CAN FD transceiver featuring a Wake-Up on Pattern (WUP) capability and optimized for data rates up to 8 Mbps. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MCP2544WFDT-E/SN is a high-speed CAN FD transceiver that serves as the interface between a CAN protocol controller and the physical two-wire bus. It supports both CAN 2.0 and CAN FD standards and is optimized for operation at 2, 5, and 8 Mbps with a maximum propagation delay of 120 ns. This model features a Wake-Up on Pattern (WUP) function for low-power standby mode, with a typical current consumption of 4 µA. Qualified to AEC-Q100, it operates over an extended temperature range of -40°C to +125°C. The device is suitable for 12V and 24V systems and is ideal for robust automotive and industrial network applications.

Search Keywords: MCP2544WFDTESN

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MCP2544WFDT-E/SN
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
TH
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3300
Package Type:
REEL
Category:
Transceiver3961
Dimension:
4.9 x 3.9 x 1.253962mm(Min)mm
  Different packaging options available.  See Alternatives

IN STOCK: 3,300

Can Ship immediately

Manufacturer Stock: 14   can ship 5/25/26

MOQ for In Stock Qty: 500

MOQ for out of Stock Qty: 825

Factory Lead-Time 32 Weeks can ship 12/22/26

Price (USD)

Qty
Unit Price
500
$0.801
825
$0.780
1,650
$0.765
2,475
$0.764
3,300 +
$0.746
Reel Package
