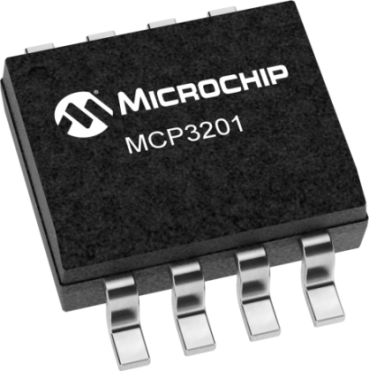

MCP3201-BI/SN by microchip technology

MCP3201-BI/SN

Microchip Technology

ADC - 12 bit - 100 kSPS - Single - 2.7 V - 5.5 V - 8-Pin. ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MCP3201 12-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3201 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 12-bit ADC capability to be added to any PIC® microcontroller. The MCP3201 features 100k samples/second, 1 input channel, low power consumption (5nA typical standby, 400µA max. active), and is available in 8-pin PDIP, SOIC and TSSOP packages. Applications for the MCP3201 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.

Search Keywords: MCP3201BISN

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MCP3201-BI/SN
RoHS:
Yes
HTS:
8542390030
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
TUBE
Converter Type:
General Purpose
Digital Interface Type:
Serial (3-Wire, SPI)
Architecture:
SAR
Dimension:
4.9 x 3.9 x 1.25(Min) mm
Digital Supply Support:
No
Differential Nonlinearity:
±1 LSB
Differential Input:
Yes
  Different packaging options available.  See Alternatives

IN STOCK: 940

Can Ship immediately

Manufacturer Stock: 23,630   can ship 12/5/25

Minimum Order: 10

Factory Lead-Time 4 Weeks can ship 12/18/25

Price (CAD)

Qty
Unit Price
10
$4.212
50
$3.967
300
$3.660
500
$3.599
1,000
$3.476
2,500
$3.430
5,000
$3.369
7,500 +
$3.323
Log in for special pricing
Click for Quote
