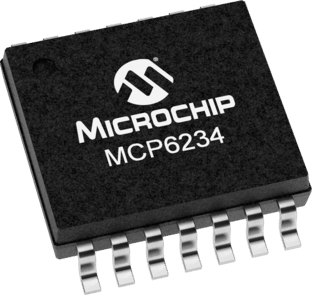

MCP6234-E/ST by microchip technology

MCP6234-E/ST

Microchip Technology

Quad Op Amp - 300kHz GBP - 20uA - 1.8 to 6.0 VDC - Rail to Rail Output - -40°C to 125°C - 14-lead TSSOP ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MICROCHIP TECH. MCP6234-E/ST is a high-performance quad operational amplifier suitable for a wide range of applications. With a gain bandwidth product of 300kHz and low power consumption of 20uA, it ensures efficient and reliable operation. The op amp is designed to work within a voltage range of 1.8V to 6.0V, providing flexibility in various power supply configurations. Its rail-to-rail output enables accurate signal amplification and excellent dynamic range. With a temperature range of -40°C to 125°C, this op amp can withstand extreme environments. The compact 14-lead TSSOP package simplifies integration, making it an ideal choice for space-constrained designs. Overall, the MCP6234-E/ST offers exceptional performance, versatility, and reliability, making it a valuable component in electronic systems.

Search Keywords: MCP6234EST

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MCP6234-E/ST
RoHS:
Yes
HTS:
8542330001
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
96
Package Type:
TUBE
Maximum Dual Supply Voltage:
N/R
Family:
MCP6234
Maximum Input Offset Current:
0.000001(Typ)@5.5V uA
Manufacturer Type:
General Purpose Amplifier
Maximum Operating Supply Voltage:
6 V
Maximum Input Bias Current:
N/A
Dimension:
5 x 4.4 x 1 mm
Maximum Input Offset Voltage:
5@5.5V mV
  Different packaging options available.  See Alternatives

IN STOCK: 5,760

Can Ship immediately

Manufacturer Stock: 15,936   can ship 12/5/25

Minimum Order: 96

Multiple: 96

Factory Lead-Time 6 Weeks can ship 1/5/26

Price (CAD)

Qty
Unit Price
96
$0.830
288
$0.795
576
$0.783
1,056
$0.771
2,592
$0.761
5,088 +
$0.749
Suppliers Standard Package
Log in for special pricing
Click for Quote
