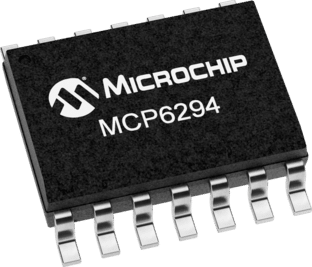

MCP6294-E/SL by microchip technology

MCP6294-E/SL

Microchip Technology

Quad Op Amp - 10 MHZ GBP - 1.0mA - 2.4 to 6.0 VDC - Rail to Rail Out - -40°C to 125°C - 14-lead SOIC ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MCP6294-E/SL is a highly versatile Quad Op Amp designed for precision and high-performance applications. With a gain-bandwidth product of 10 MHz, this op amp provides excellent accuracy and stability even at high frequencies. Operating on a low supply current of 1.0mA, it offers efficient power utilization. Featuring a wide voltage range of 2.4 to 6.0 VDC, this op amp ensures flexibility in various voltage supply configurations. The rail-to-rail output capability allows for full swing output voltage even at low supply voltages. With its wide operating temperature range of -40°C to 125°C, this op amp is suitable for harsh environmental conditions. The 14-lead SOIC package offers easy integration and space-efficient layout. Overall, the MCP6294-E/SL is a reliable and high-performance solution for precision applications that require multiple op amps with low power consumption and wide voltage range.

Search Keywords: MCP6294ESL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MCP6294-E/SL
RoHS:
Yes
HTS:
8542330001
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
57
Package Type:
TUBE
Maximum Dual Supply Voltage:
N/R
Maximum Input Offset Voltage:
3@5.5V mV
Manufacturer Type:
General Purpose Amplifier
Maximum Operating Supply Voltage:
5.5 V
Family:
MCP6294
Dimension:
8.65 x 3.9 x 1.25(Min) mm
Maximum Input Offset Current:
0.000001(Typ)@5.5V uA
Maximum Input Bias Current:
0.000001@5.5V uA
  Different packaging options available.  See Alternatives

IN STOCK: 516

Can Ship immediately

Manufacturer Stock: 10,672   can ship 12/5/25

Minimum Order: 57

Multiple: 57

Factory Lead-Time 4 Weeks can ship 12/22/25

Price (CAD)

Qty
Unit Price
57
$2.233
285
$2.094
513
$2.048
1,026
$1.955
2,508
$1.925
5,016 +
$1.894
