MCP73871T-1AAI/ML by microchip technology

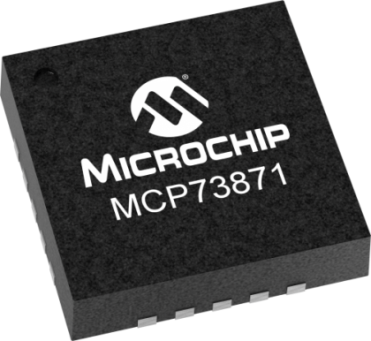

Image is representational - see mfr. specs

MCP73871T-1AAI/ML

Microchip Technology

The MCP73871T-1AAI/ML is a stand-alone system load sharing and Li-Ion/Li-Polymer battery charge management controller with a preset charge voltage of 4.10V. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MCP73871T-1AAI/ML is a fully integrated linear charge management controller designed for system load sharing and charging single-cell Li-Ion/Li-Polymer batteries. This specific variant provides a preset high-accuracy charge voltage regulation of 4.10V with a ±0.5% tolerance. It supports selectable power input from a USB port or an AC-DC wall adapter, with resistor-programmable fast charge current control from 50 mA to 1A and a maximum total input current of 1.8A. The MCP73871T-1AAI/ML configuration comes with the safety timer and low battery output (LBO) features disabled. Housed in a 20-lead QFN package, it is ideal for a wide range of portable applications including GPS devices, smart phones, digital cameras, and portable medical devices.

Search Keywords: MCP73871T1AAIML

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MCP73871T-1AAI/ML
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
TH
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3300
Package Type:
REEL
Maximum Operating Supply Voltage:
6 V
Minimum Operating Supply Voltage:
4.4 V
Dimension:
4 x 4 x 0.881206mmmm
Mounting:
Surface Mount
Maximum Power Dissipation:
N/A
Output Current:
1000 mA
Maximum Supply Current:
2.5(Typ) mA
Battery Type:
Li-Ion1205,Li-Pol1205
Family:
MCP73871
Operating Temperature:
-40 to 85 °C
  Different packaging options available.  See Alternatives

IN STOCK: 0

Minimum Order Quantity: 250

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
250
$1.77
500
$1.75
1,000
$1.67
3,300
$1.66
6,600
$1.65
9,900
$1.63
13,200
$1.62
16,500 +
$1.61
Reel Package
