MIC4223YM-TR by microchip technology

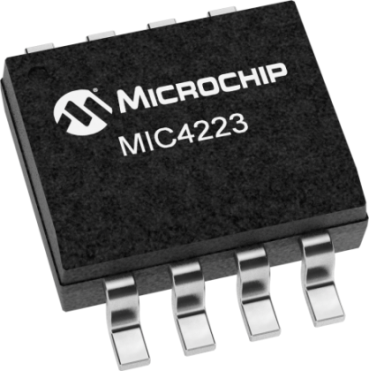

Image is representational - see manufacturer specifications
Microchip Technology Authorized Distributor

MIC4223YM-TR

The MIC4223YM-TR is a dual inverting, high-speed, low-side MOSFET driver with a 4A peak output current and independent enable inputs. ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The MIC4223YM-TR is a dual inverting, high-speed, low-side MOSFET driver designed to operate from a 4.5V to 18V supply. It can sink and source 4A of peak current from a 12V supply, allowing it to quickly charge and discharge a 2000pF load capacitance in under 15ns. Each driver features a dedicated active-high enable input with TTL and CMOS logic-level thresholds that are independent of the supply voltage. The device is protected against ground bounce, with inputs able to withstand -5V of voltage swing. Housed in an 8-pin SOIC package, this driver is ideal for high-efficiency MOSFET switching, switch-mode power supplies, and DC-to-DC converters.

Search Keywords: MIC4223YMTR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MIC4223YM-TR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
MY
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2500
Package Type:
REEL
Driver Configuration:
Inverting6275
Driver Type:
Low Side6276
Absolute Propagation Delay Time:
150 ns
Bridge Type:
N/A
Dimension:
4.93 x 3.94 x 1.486274mmmm
  Different packaging options available.  See Alternatives

IN STOCK: 1,575

Can Ship immediately

Minimum Order Quantity: 500

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
500
$0.556
1,000
$0.552
2,500
$0.536
5,000
$0.535
7,500
$0.529
10,000
$0.528
15,000
$0.526
25,000 +
$0.524
Reel Package
