MIC5841YWM by microchip technology

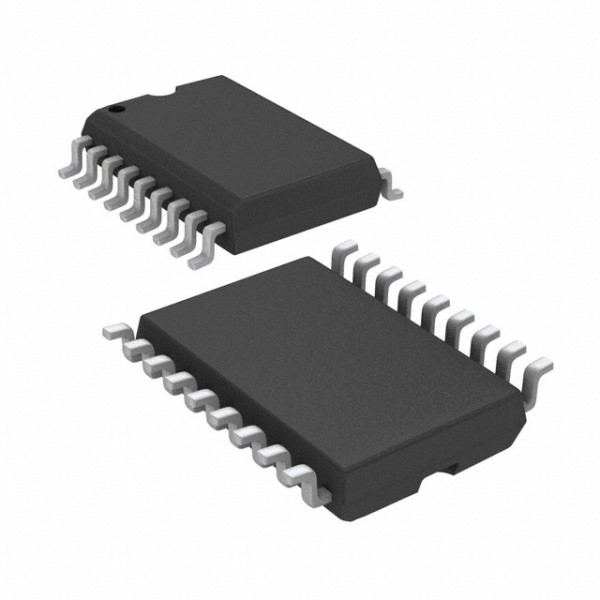

Image is representational - see mfr. specs

MIC5841YWM

Microchip Technology

Peripheral Driver - Serial Input Latched - 8 Outputs - 5 V to 15 V supply - 50 V/500 mA out - SOIC W - 18 Pin. ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MIC5841YWM is a serial-input Latched Driver uses BiCMOS technology. It is fabricated to be used in a wide variety of peripheral power driver applications. The device has an 8-bit CMOS shift register, CMOS control circuitry, eight CMOS data latches and eight bipolar current-sink Darlington output drivers. The driver can be operated with a split supply where the negative supply is down to -20V. The 500mA outputs with integral transient-suppression diodes are suitable for use with lamps, relays, solenoids and other inductive loads. This device has improved speed characteristics. With a 5V logic supply, it will typically operate faster than 5MHz. With a 12V supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS and NMOS logic levels. By using the serial data output, the driver can be cascaded for interface applications requiring additional drive lines.

Search Keywords: MIC5841YWM

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
MIC5841YWM
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
41
Package Type:
TUBE
Dimension:
11.66 x 7.65 x 2.39 mm
Absolute Propagation Delay Time:
N/A
Direction Type:
Uni-Directional
  Different packaging options available.  See Alternatives

IN STOCK: 2,296

Can Ship immediately

Minimum Order Quantity: 41

Multiple: 41

Factory Lead-Time 4 Weeks

Price (USD)

Qty
Unit Price
41
$3.57
82
$3.46
287
$3.43
533
$3.41
1,025 +
$3.39
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
