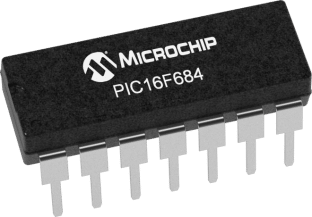

PIC16F684-I/SL by microchip technology

PIC16F684-I/SL

Microchip Technology

MCU 8 Bit - Flash - PIC16 Family PIC16F6XX Series Microcontrollers - 20 MHz - 3.5 KB - 128 Byte - 14 Pins. ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PIC16F684-I/SL is a 8-bit Flash-based CMOS Microcontroller with nanoWatt technology. The low pin-count (14) PIC® flash microcontroller offers all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0 to 5.5V and on-board EEPROM data memory. Standard analogue peripherals include up to 8 channels of 10-bit A/D, an analogue comparator module with two comparators programmable on-chip voltage reference and an enhanced capture/compare/PWM (ECCP). The ECCP peripheral offers up to four outputs with programmable dead band delay and auto-shutdown and restart options. The PIC16F684 has a 13-bit program counter capable of addressing an 8k x 14 program memory space. Only the first 2k x 14 (0000h-07FFh) for the PIC16F684 is physically implemented. Accessing a location above these boundaries will cause a wrap around within the first 2k x 14 space.

Search Keywords: PIC16F684ISL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
PIC16F684-I/SL
RoHS:
Yes
HTS:
8542310015
COO:
PH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
57
Package Type:
TUBE
Program Memory Type:
Flash
ADC Resolution:
10 bit
Program Memory Size:
3.5 KB
Operating Temperature:
-40 to 85 °C
RAM Size:
128 B
Number of Programmable I/Os:
12
  Different packaging options available.  See Alternatives

IN STOCK: 3,990

Ships today, if you order in

Manufacturer Stock: 49,242   can ship 12/5/25

Minimum Order: 57

Multiple: 57

Factory Lead-Time 4 Weeks can ship 12/19/25
