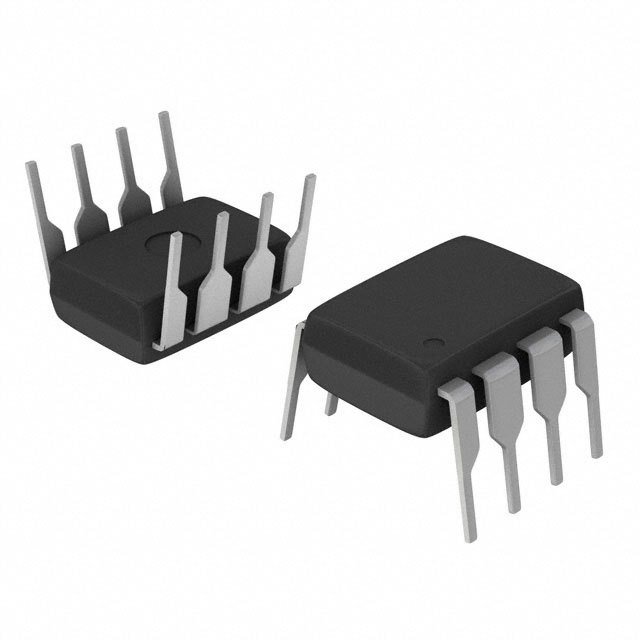

TC4424EPA by microchip technology

TC4424EPA

Microchip Technology

MOSFET Driver Dual - Low Side Non-Inverting - 4.5V-18V supply - 3A peak out - 3.5 Ohm output - PDIP - 8 Pin. ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TC4424EPA is a dual non-inverting high-speed power MOSFET Driver features higher peak output current drive capability, lower shoot-through current, matched rise/fall times and propagation delay times. The TC4423A device is pin-compatible with the existing TC4423 family. The TC4424A driver can easily charge and discharge 1800pF gate capacitance in under 20ns, provides low enough impedances in both the ON and OFF states to ensure the MOSFETs intended state will not be affected, even by large transients. The inputs may be driven directly from either TTL or CMOS. In addition, the 300mV of built-in hysteresis provides noise immunity and allows the device to be driven from slow rising or falling waveforms.

Search Keywords: TC4424EPA

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
TC4424EPA
RoHS:
Yes
HTS:
8542390090
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
TUBE

IN STOCK: 660

Can Ship immediately

Minimum Order: 60

Multiple: 60

Factory Lead-Time 9 Weeks

Price (CAD)

Qty
Unit Price
60
$3.772
120
$3.572
300
$3.541
540
$3.526
1,020
$3.509
2,520
$3.494
5,040 +
$3.479
Suppliers Standard Package
Log in for special pricing
Click for Quote
