TC7106CPL by microchip technology

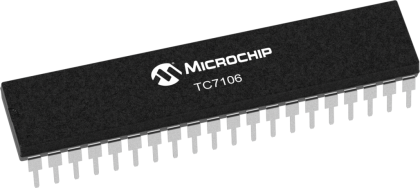

Image is representational - see mfr. specs

TC7106CPL

Microchip Technology

Single ADC - Dual Slope 3 1/2Digit for LCD - 40-Pin PDIP - Tube ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TC7106CPL is a highly reliable and accurate single ADC (Analog-to-Digital Converter) chip, specifically designed for use with LCD (Liquid Crystal Display) screens. With its dual slope architecture, it ensures precise, noise-free measurements, making it perfect for applications that require high-resolution data acquisition. This 3 1/2 digit ADC offers exceptional performance and features a convenient 40-Pin PDIP package, ensuring easy integration into electronic circuits. The TC7106CPL is an ideal choice for engineers and hobbyists seeking reliable and versatile ADC solutions.

Search Keywords: TC7106CPL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
TC7106CPL
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
TUBE
Digital Interface Type:
LCD
Architecture:
Dual Slope
Digital Supply Support:
No
Dimension:
53.21(Max) x 14.73(Max) x 4.95(Max) mm
Differential Input:
Yes
Converter Type:
General Purpose
Differential Nonlinearity:
N/A
  Different packaging options available.  See Alternatives

IN STOCK: 1,300

Ships today, if you order in

Manufacturer Stock: 1,030   can ship 5/4/26

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 4 Weeks can ship 5/22/26

Price (USD)

Qty
Unit Price
10
$7.08
50
$6.36
100
$5.74
250
$5.71
500
$5.69
1,000
$5.65
2,500
$5.62
5,000 +
$5.59
Suppliers Standard Package
