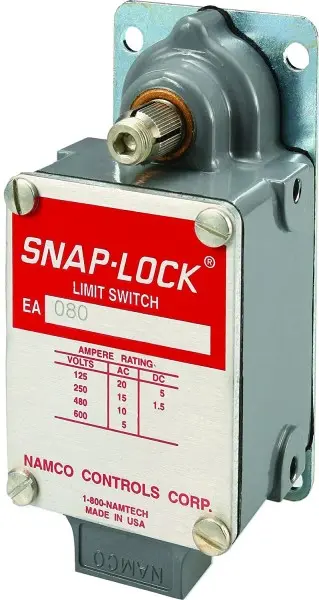

EA080-11105

Name: EA080-11105
Brand: Namco Controls
SKU: 40789797
Price: 785.38 USD
Availability: OutOfStock

The EA080-11105 is a single-pole, double-throw (SPDT) heavy-duty limit switch for standard environments, featuring one normally open and one normally closed circuit. ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Box Packaging

Certificate of Compliance

DESCRIPTION

The EA080-11105 is a heavy-duty, single-pole double-throw limit switch designed for clockwise (CW) operation. It requires a mechanical travel angle of 10° to trip the contacts and operates with a torque of 14 inch-pounds. This switch features silver alloy butt contacts within a zinc housing rated for NEMA 1, 4, and 13 environments. It is rated for a continuous AC current of 20A at 125V and a DC current of 5A at 125V. The robust construction and an operating temperature range of -20°C to +90°C make it suitable for demanding industrial control and position sensing applications.

Product Highlights:

Potential Applications:

Search Keywords: EA08011105

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

NAMCO Controls

Part No:

EA080-11105

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536509055

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
