NAC3FPX by neutrik

NAC3FPX

Neutrik

powerCON TRUE1 Chassis Connectors - Appliance outlet connector - 1/4'' flat tab terminals The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is n ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NAC3FPX is Appliance outlet connector, 1/4'' flat tab terminals The NAC3FPX has rated voltage of 250 V ac and rated current per contact of 16 A rms (USA: 20 A) and dielectric strength of 4 kVdc / 2.8 kVac. The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Search Keywords: NAC3FPX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NAC3FPX
RoHS:
Yes
HTS:
8536694020
COO:
GB
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Outlets
Body Orientation:
Straight
Mounting:
Panel Mount
Gender:
F
Number of Contacts:
2Power/1Ground
Termination Method:
N/A
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

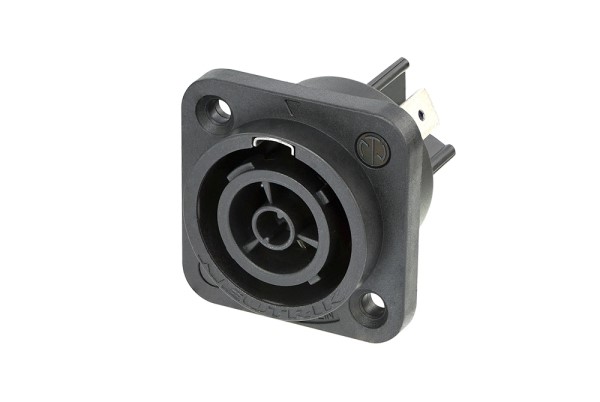

NAC3FPX-TOP
NAC3FPX-TOP
VIEW PRODUCT
