NAC3FXXA-W-S-D by neutrik
Image is representational - see mfr. specs

NAC3FXXA-W-S-D

NEUTRIK

A locking, single-phase AC mains cable connector for power-in applications, featuring screw terminal assembly and Circuit Breaking Capability (CBC). ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NAC3FXXA-W-S-D is a single-phase, 3-conductor locking AC mains cable connector designed for power-in applications, identified by its blue color-coding. It is rated for 16 A at 250 V AC in Europe and 20 A at 127 V AC in the USA/Canada, providing Circuit Breaking Capability (CBC) when mated with powerCON XX Series receptacles. The connector features screw-type terminals for assembly and accommodates cable outer diameters from 6 mm to 12 mm and wire sizes from 1.5 to 2.5 mm² (16-12 AWG). Its robust twist-lock system and unique locking bushing ensure a secure connection. Certified to IEC/EN/UL 60320-1, this connector is an ideal replacement for standard appliance couplers where a rugged and safe power connection is critical.

Search Keywords: NAC3FXXAWSD

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NAC3FXXA-W-S-D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020.00
COO:
LI
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100

IN STOCK: 22

Ships today, if you order in

Manufacturer Stock: 2,800   can ship 5/4/26

Minimum Order Quantity: 5

Factory Lead-Time 9 Weeks can ship 6/25/26

Price (USD)

Qty
Unit Price
5
$9.37
25
$7.71
50
$7.59
100
$7.39
300
$6.82
500
$6.73
1,000
$6.62
2,500 +
$6.42
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

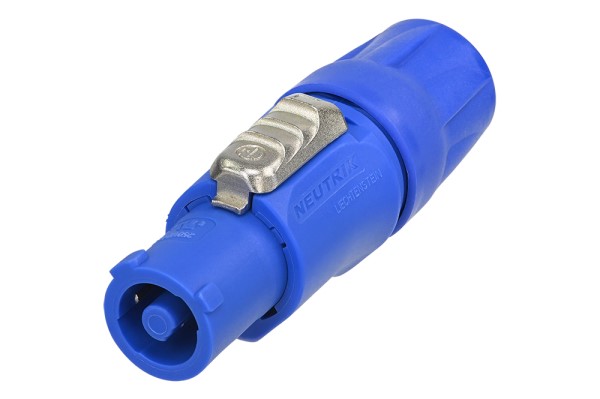

Older Equivalent
NAC3FCA-D
NAC3FCA-D
VIEW PRODUCT

Tools/3D Models

Product Guides
