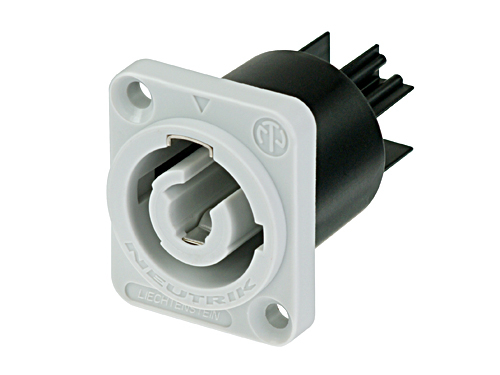

Image is representational - see mfr. specs
NAC3MPB
NEUTRIKConn Power M 3 POS ST Panel Mount 3 Terminal 1 Port ...
RoHS Compliant
Discontinued & Replaced
DESCRIPTION
Air tight chassis connector, B-type for power-out, flat tab terminals
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Product Highlights:
- Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground.
- High current capacity, rated at 20A / 250V ac.
- Fast and easy locking system
- Extremely robust and reliable
- Excellent cable retention
- UL, C-UL recognized components
- VDE and SEV approved
Search Keywords: NAC3MPB
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NAC3MPB
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
LI
ECCN:
EAR99
Supplier Standard Pack:
10
Type:
Power
Body Orientation:
Straight
Mounting:
Panel Mount
Gender:
M
Number of Contacts:
3
Termination Method:
N/A
Maximum Voltage Rating:
250 V
Maximum Current Rating:
20/Contact A
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 10
Can Ship immediately
Price (USD)
Qty
Unit Price
1
$2.14
25
$2.10
50
$2.05
100
$2.01
250
$1.98
500
$1.95
1,000
+
$1.91
Please Note:
Tariffs may apply for U.S. shipments
Datasheet
