ALTERNATIVE PRODUCTS
RECOMMENDED REPLACEMENT

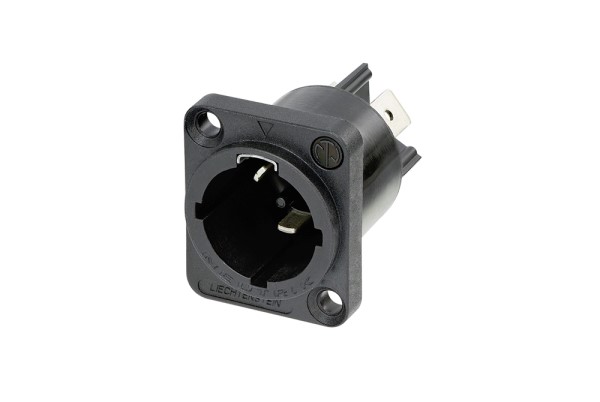

NAC3MPX-TOP
NAC3MPX-TOP

In Stock: 2,508

Minimum Order: 5

VIEW PRODUCT
NAC3MPX by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NAC3MPX

powerCON TRUE1 Chassis Connectors - Appliance inlet connector - 1/4'' flat tab terminals The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is ne ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The NAC3MPX is Appliance inlet connector, 1/4'' flat tab terminals The NAC3MPX has rated voltage of 250 V ac and rated current per contact of 16 A rms (USA: 20 A) and dielectric strength of 4 kVdc / 2.8 kVac. The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Search Keywords: NAC3MPX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NAC3MPX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
GB
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Inlets
Body Orientation:
Straight
Mounting:
Panel Mount
Gender:
M
Number of Contacts:
2Power/1Ground
Termination Method:
N/A
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered

Tools/3D Models

Product Guides
