NC3FBH1 by neutrik
Image is representational - see mfr. specs

NC3FBH1

NEUTRIK

B Series - 3 pole female XLR receptacle - grounding: mating connector shell to pin1 and front panel - horizontal PCB mount Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NC3FBH1 is 3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount The NC3FBH1 has rated voltage of < 50 V and rated current per contact of 6 A and dielectric strength of 1,5 kVdc . Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Search Keywords: NC3FBH1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC3FBH1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040.00
COO:
LI
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
XLR Connector
Gender:
F
Body Orientation:
Right Angle
Mounting:
Through Hole
Housing Material:
Polyamide
Number of Contacts:
3
Contact Plating:
AuCo Over NiP15
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C

IN STOCK: 309

Can Ship immediately

Manufacturer Stock: 100   can ship 5/11/26

Minimum Order Quantity: 10

Factory Lead-Time 15 Weeks can ship 8/10/26

Price (USD)

Qty
Unit Price
10
$4.56
50
$4.42
100
$4.10
300
$4.05
500
$3.73
1,000
$3.24
2,500
$3.23
5,000 +
$3.21
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

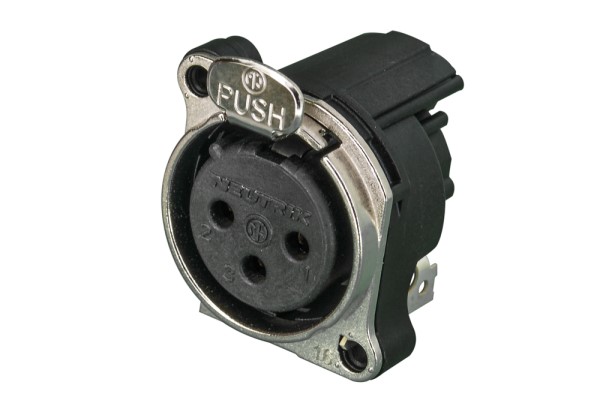

Older Equivalent
NC3FBAH1
NC3FBAH1
VIEW PRODUCT

Tools/3D Models

Product Guides
