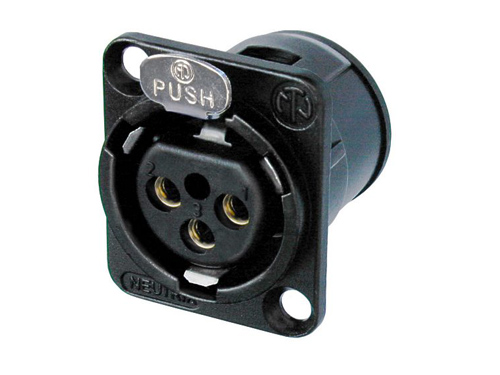

NC3FP-B-1 by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NC3FP-B-1

P Series - 3 pole female receptacle - solder contacts - black metal housing - gold contacts Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The NC3FP-B-1 is 3 pole female receptacle, solder contacts, black metal housing, gold contacts The NC3FP-B-1 has rated voltage of < 50 V and rated current per contact of 16 A and dielectric strength of 1,5 kVdc . Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.

Product Highlights:

  • Smallest available hard wiring receptacles with large solder cups
  • Short female receptacle
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32

Search Keywords: NC3FPB1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC3FP-B-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
HU
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Type:
XLR Connector
Gender:
F
Body Orientation:
Straight
Mounting:
Panel Mount
Housing Material:
Zinc Die Cast
Number of Contacts:
3
Contact Plating:
Gold Alloy Over Nickel
Termination Method:
Solder Cup
Operating Temperature:
-30 to 80 °C

IN STOCK: 327

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 3 Weeks

Price (USD)

Qty
Unit Price
5
$7.49
25
$6.38
100
$6.04
300
$6.00
500
$5.99
1,000
$5.97
2,500
$5.96
5,000 +
$5.95
Supplier's Standard Package
