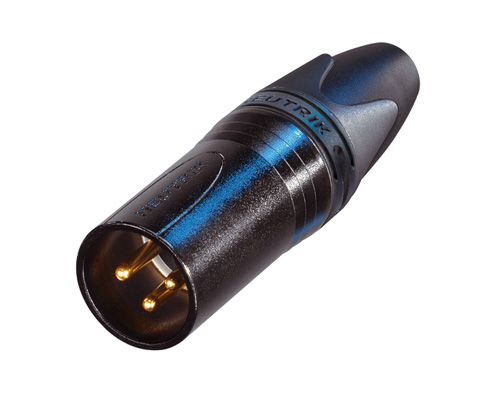

NC3MXX-B
NC3MXX-B

In Stock: 575

Minimum Order: 5

VIEW PRODUCT
NC3MX-B by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NC3MX-B

X Series - 3 pole male cable connector with black metal housing and gold contacts. The "industry standard" XLR cable connector - easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell - fibreglass reinforced hard plas ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The NC3MX-B is 3 pole male cable connector with black metal housing and gold contacts. The NC3MX-B has rated voltage of < 50 V and rated current per contact of 16 A and dielectric strength of 1,5 kVdc . The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Product Highlights:

  • Boot with rubber gland gives high protection against bending stresses
  • Coloured rings and boots available for coding and marking
  • UL recognized components

Search Keywords: NC3MXB

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC3MX-B
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Type:
XLR Connector
Gender:
M
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
N/A
Number of Contacts:
3
Contact Plating:
Gold Alloy Over Nickel
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
