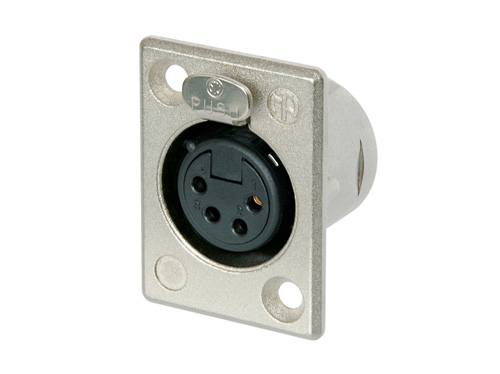

NC4FP-1 by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NC4FP-1

P Series - 4 pole female receptacle, solder contacts - Nickel housing - silver contacts Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The NC4FP-1 is 4 pole female receptacle, solder contacts, Nickel housing, silver contacts The NC4FP-1 has rated voltage of < 50 V and rated current per contact of 10 A and dielectric strength of 1,5 kVdc . Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.

Product Highlights:

  • Smallest available hard wiring receptacles with large solder cups
  • Short female receptacle
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32

Search Keywords: NC4FP1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC4FP-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
LI
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Type:
XLR Connector
Gender:
F
Body Orientation:
Straight
Mounting:
Panel Mount
Housing Material:
Polyamide 6/6
Number of Contacts:
4
Contact Plating:
Silver over Nickel
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C

IN STOCK: 450

Can Ship immediately

Manufacturer Stock: 100   can ship 11/16/26

Minimum Order Quantity: 5

Factory Lead-Time 3 Weeks can ship 11/23/26
