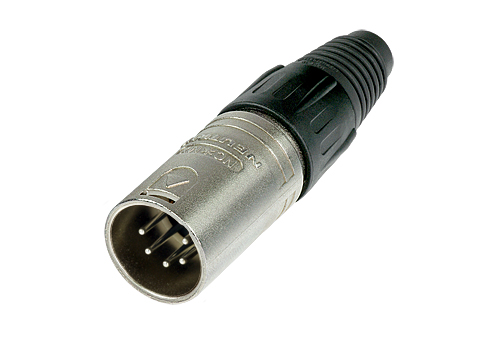

NC5MXX by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NC5MXX

XX Series - 5 pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable - easi ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The NC5MXX is 5 pole male cable connector with Nickel housing and silver contacts. The NC5MXX has rated voltage of < 50 V and rated current per contact of 7,5 A and dielectric strength of 1,5 kVdc . The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Product Highlights:

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage

Search Keywords: NC5MXX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC5MXX
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Type:
XLR Connector
Gender:
M
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
Polyamide 6/6
Number of Contacts:
5
Contact Plating:
Silver over Nickel
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
  Possible Replacement options available.  See Alternatives

IN STOCK: 485

Ships today, if you order in

Manufacturer Stock: 3,300   can ship 11/16/26

Minimum Order Quantity: 5

Factory Lead-Time 3 Weeks can ship 11/23/26

Price (USD)

Qty
Unit Price
5
$8.31
25
$6.95
100
$6.55
300
$6.37
500
$6.34
1,000
$6.32
2,500
$6.31
5,000 +
$6.29
