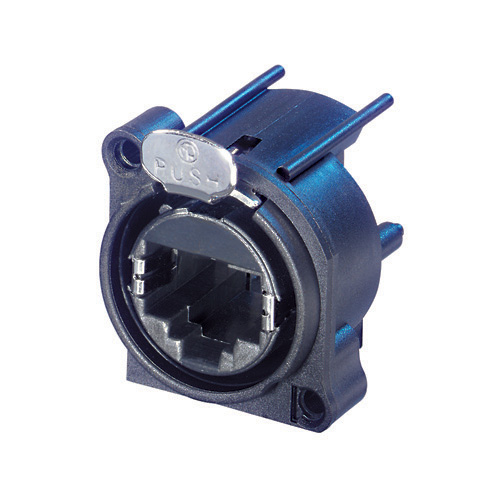

NE8FAH by neutrik

NE8FAH

Neutrik

etherCON A Series - Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock - max. panel thickness 3 mm The etherCON Series is a ruggedized and lockable RJ45 connector system - optimized for pro audio - video and lightning network applicati ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NE8FAH is Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3 mm The NE8FAH has rated voltage of < 50 V and rated current per contact of 1,5 A and dielectric strength of 1 kVdc

Product Highlights:

  • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Most space saving and cost effective design
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Isolated to panel ground
  • Crosstalk compensation at connecting hardware to achieve CAT5e on request

Search Keywords: NE8FAH

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NE8FAH
RoHS:
Yes
HTS:
8536694040
COO:
HU
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
RJ-45
Body Orientation:
Right Angle
Mounting:
Through Hole
Pitch:
2.54 mm
Gender:
F
Number of Contacts:
8
Maximum Voltage Rating:
50 V
Maximum Current Rating:
1.5/Contact A
Operating Temperature:
-30 to 80 °C

IN STOCK: 362

Ships today, if you order in

Manufacturer Stock: 7,500   can ship 12/1/25

Minimum Order: 5

Factory Lead-Time 3 Weeks can ship 12/11/25

Price (USD)

Qty
Unit Price
5
$5.758
50
$5.037
100
$4.388
300
$4.367
500
$4.347
1,000
$4.326
2,500
$4.305
5,000 +
$4.285
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

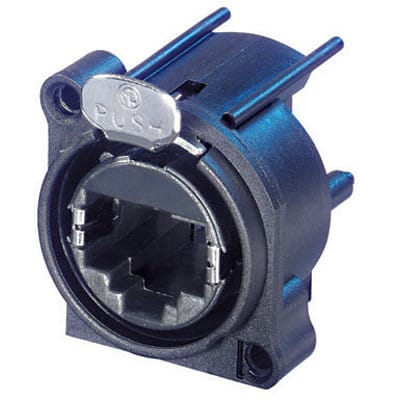

Older Equivalent
