NL4FC by neutrik

NL4FC

Neutrik

FC Series - 4 pole cable connector - chuck type strain relief The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals in ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NL4FC is 4 pole cable connector, chuck type strain relief The NL4FC has rated current per contact of 30 A rms continuous. The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Product Highlights:

  • Up to 30 A rms current rating
  • Reliable and robust, easy and fast to assemble
  • Cable strain relief for 5 - 15 mm cable O.D.
  • Accurate and dependable twist lock latching system "Quick Lock"
  • Glass reinforced material for insert and housing, long-lasting and dependable
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Search Keywords: NL4FC

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NL4FC
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Loudspeaker Connector3389
Gender:
F3371
Body Orientation:
Straight3367
Mounting:
Cable Mount3378
Housing Material:
Polyamide 6/63373
Number of Contacts:
4
Contact Plating:
Silver3369
Termination Method:
Screw/Solder3388
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

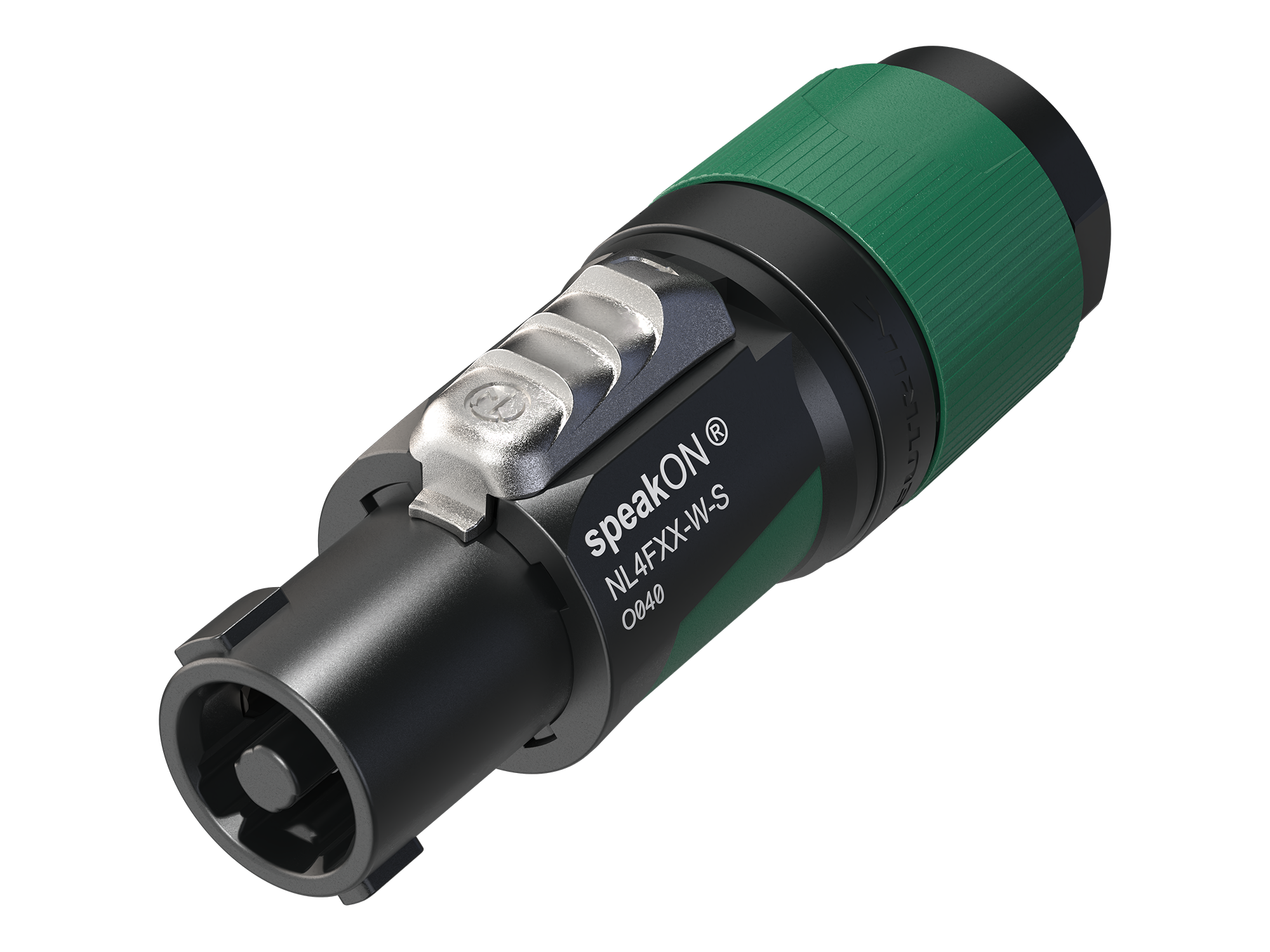

NL4FXX-W-S
NL4FXX-W-S
VIEW PRODUCT
