NL8MPR by neutrik

NL8MPR

Neutrik

speakON Chassis Connectors - 8 pole chassis connector - nickel metal square G-size flange - countersunk thru holes - 3/16" flat tabs The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. The ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NL8MPR is 8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs The NL8MPR has rated current per contact of 30 A rms continuous. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Product Highlights:

  • Standard current rating 30 Amp
  • High current version up to 40 Amp audio current
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal flange
  • Airtight design - optimized for speaker applications

Search Keywords: NL8MPR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NL8MPR
RoHS:
Yes
HTS:
8536694040
COO:
GB
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Type:
Loudspeaker Connector
Gender:
M
Body Orientation:
Straight
Mounting:
Panel Mount
Housing Material:
Polyamide
Number of Contacts:
8
Contact Plating:
Silver
Termination Method:
N/A
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

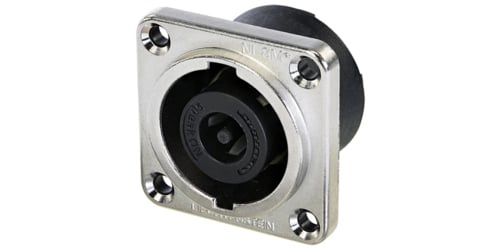

RECOMMENDED REPLACEMENT
NL8MPRXX
NL8MPRXX
