RECOMMENDED REPLACEMENT
NLT4FXX-BAG
NLT4FXX-BAG

In Stock: 176

Minimum Order: 5

VIEW PRODUCT

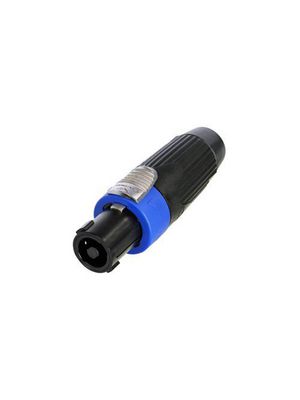

NLT4FX-BAG by neutrik
Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NLT4FX-BAG

STX Series - 4 pole female cable connector, black-chrome metal housing - chuck type strain relief The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durabl ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

4 pole female cable connector, black-chrome metal housing, chuck type strain relief

The new STX Series is the next generation of 4 pole speakON connectors especially designed for amplifier-loudspeaker applications in harsh and demanding environments such as professional touring. The extremely rugged and durable STX Series feature an all metal housing and a built-in gasket providing weatherproof protection to IP54. The 4 pole version is now available as 4 gender system including male cable and female chassis connector.

Product Highlights:

  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6mm² (AWG10) wires
  • Mate with all available Speakon products

Search Keywords: NLT4FXBAG

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NLT4FX-BAG
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50
Type:
Loudspeaker Connector
Gender:
F
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
Zinc Die Cast
Number of Contacts:
4
Contact Plating:
Silver
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
