NP2X-AU-SILENT by neutrik

NP2X-AU-SILENT

Neutrik

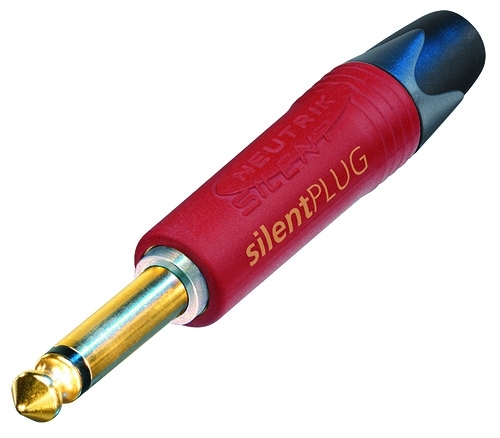

silentPLUG - 2 pole 1/4" professional phone plug - gold plated contacts - red rubber overlay - silent switch The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under l ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NP2X-AU-SILENT is 2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch The NP2X-AU-SILENT has rated voltage of < 50 V and rated current per contact of depends on mating connector A and dielectric strength of 0.2 kVdc

Product Highlights:

  • Hermetically sealed and magnetically operated switch
  • No wear, constant contact resistance
  • No corrosion or pollution of switch, durable and long-lasting
  • Lifetime beyond 10'000 mating cycles

Search Keywords: NP2XAUSILENT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NP2X-AU-SILENT
RoHS:
Yes
HTS:
8536694020
COO:
LI
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
1/4" Phone Plug
Gender:
PL
Body Orientation:
Straight
Mounting:
Cable Mount
Housing Material:
Polyamide 6/6
Number of Contacts:
2
Contact Plating:
Gold
Termination Method:
Solder
Operating Temperature:
-20 to 65 °C
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 131

Ships today, if you order in

Minimum Order: 17

Price (USD)

Qty
Unit Price
17
$20.054
36
$18.509
100 +
$17.201
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

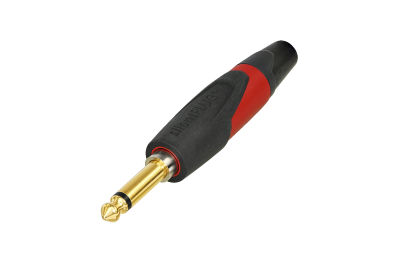

RECOMMENDED REPLACEMENT
NP2XX-SILENT
NP2XX-SILENT
VIEW PRODUCT
