NSJ12HF-1 by neutrik

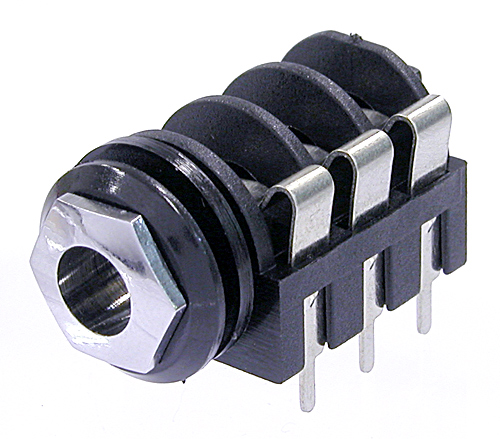

Image is representational - see manufacturer specifications
NEUTRIK Authorized Distributor

NSJ12HF-1

Stacking Jacks - Stereo dual jack - full threaded nose The 1/4" stacking jack features highest board packing density as two jacks are in a single footprint and as they fit in 1 RU. Please note: Fixing nut and washers must be ordered separately. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

Stereo dual jack, full threaded noseThe 1/4" stacking jack features highest board packing density as two jacks are in a single footprint and as they fit in 1 RU.

Product Highlights:

  • Stereo dual slim jack socket for PCB mounting with switch contacts
  • Highest board packing density as two jacks are in a single footprint, fit in 1 RU
  • Mates with A-gauge plugs acc. EIA RS-453

Search Keywords: NSJ12HF1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NSJ12HF-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
HU
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Type:
1/4" Stereo Jack
Gender:
F
Body Orientation:
Right Angle
Mounting:
Through Hole
Housing Material:
N/A
Number of Contacts:
6
Contact Plating:
Silver
Termination Method:
Solder
Operating Temperature:
-25 to 70 °C

IN STOCK: 2,124

Ships today, if you order in

Manufacturer Stock: 1,200   can ship 11/16/26

Minimum Order Quantity: 10

Factory Lead-Time 3 Weeks can ship 11/23/26

Price (USD)

Qty
Unit Price
10
$4.58
50
$4.02
100
$3.79
300
$3.75
500
$3.74
1,000
$3.20
2,500
$3.00
5,000 +
$2.99
