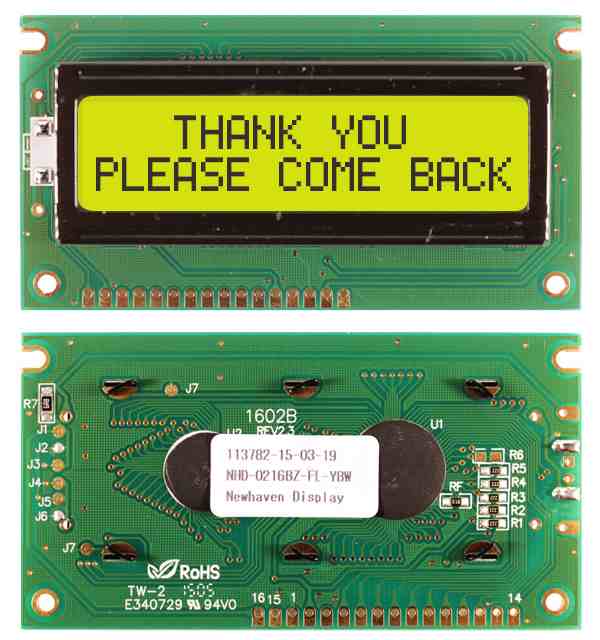

NHD-0216BZ-FL-YBW by newhaven display
Image is representational - see manufacturer specifications
Newhaven Display Authorized Distributor

NHD-0216BZ-FL-YBW

LCD Character Display - 2 x 16 Character - STN-Yellow/Green - Yellow/Green Backlight - 84.0 x 44.0 mm ...

View Datasheet Ask the Datasheet
RoHS Compliant
BULK Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The NHD-0216BZ-FL-YBW is a 2 x 16 Character LCD Character Display. It features a STN-Yellow/Green Transflective Display with a Yellow/Green Backlight. Character size is 5.23 x 3.00 mm. It uses an 8-Bit Parallel Interface. Voltage requirement is 5V. Controller required is the SPLC780D or ST7066U

Search Keywords: NHD0216BZFLYBW

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-0216BZ-FL-YBW
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BULK
Display Format:
2 x 16 Characters
Display Type:
STN- Y/G
Display Mode:
Transflective
Text Color:
Blue
Background Color:
Yellow/Green
Backlight:
LED - Yellow/Green
Active Area:
N/A
Character Size:
5.23 x 3.0 mm
Dimension:
84 x 44 x 13.5 mm
Interface:
8-Bit Parallel
Supply Voltage:
5 V
Operating Temperature:
-20 to +70 °C

IN STOCK: 933

Ships today, if you order in

Manufacturer Stock: 2,651   can ship 11/16/26

Minimum Order Quantity: 5

Factory Lead-Time 16 Weeks can ship 2/22/27

Price (USD)

Qty
Unit Price
5
$8.00
25
$7.30
50
$7.23
100
$7.16
250
$7.14
500
$7.13
1,000 +
$7.11
