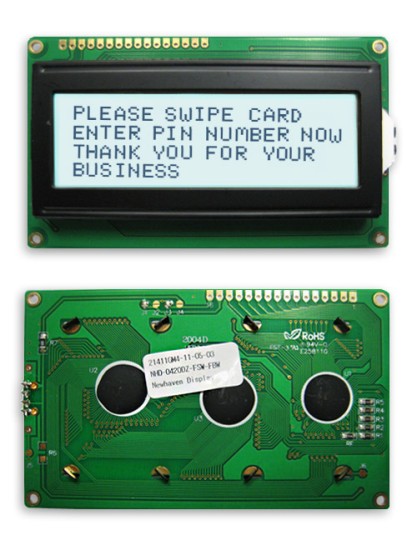

NHD-0420DZ-FSW-FBW by newhaven display

NHD-0420DZ-FSW-FBW

Newhaven Display

LCD Character Display - 4 x 20 Character - FSTN (+) - White Backlight - 98.0 x 60.0 mm ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NHD-0420DZ-FSW-FBW is a 4 x 20 Character LCD Character Display. It features a FSTN (+) Transflective Display with a White Backlight. Character size is 4.75 x 2.95 mm. It uses an 8-Bit Parallel Interface. Voltage requirement is 5V. Controller required is the SPLC780D or ST7066U

Search Keywords: NHD0420DZFSWFBW

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-0420DZ-FSW-FBW
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Display Format:
4 x 20 Characters
Display Type:
FSTN (+)
Display Mode:
Transflective
Text Color:
Black
Background Color:
White
Backlight:
LED - White
Active Area:
70.4 x 20.8 mm
Character Size:
4.75 x 2.95 mm
Dimension:
98 x 60 x 13.6 mm
Interface:
8-Bit Parallel
Supply Voltage:
5 V
Operating Temperature:
-20 to +70 °C

IN STOCK: 692

Ships today, if you order in

On Order: 3,192   can ship 12/22/25

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
1
$31.405
5
$29.417
10
$28.552
25
$27.419
50
$26.564
100
$25.699
250 +
$24.566
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
