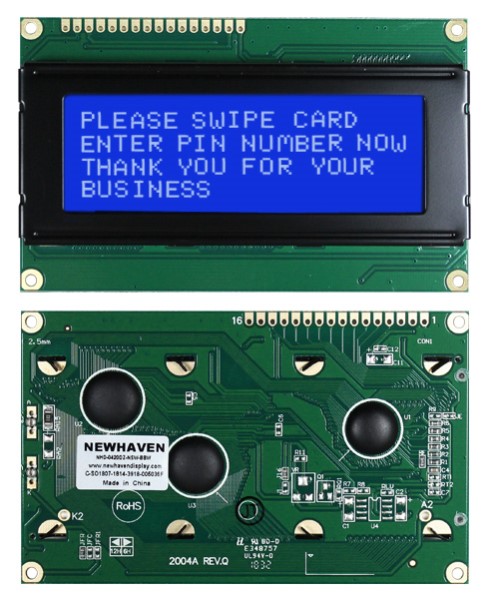

NHD-0420DZ-NSW-BBW by newhaven display

NHD-0420DZ-NSW-BBW

Newhaven Display

LCD Character Display - 4 x 20 Character - STN- Blue - White Backlight - 98.0 x 60.0 mm ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The NHD-0420DZ-NSW-BBW is a 4 x 20 Character LCD Character Display. It features a STN- Blue Transmissive Display with a White Backlight. Character size is 4.75 x 2.95 mm. It uses an 8-Bit Parallel Interface. Voltage requirement is 5V. Controller required is the SPLC780D or ST7066U

Search Keywords: NHD0420DZNSWBBW

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-0420DZ-NSW-BBW
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Display Format:
4 x 20 Characters
Display Type:
STN- BLUE
Display Mode:
Transmissive
Text Color:
White
Background Color:
Blue
Backlight:
LED - White
Active Area:
70.4 x 20.8 mm
Character Size:
4.75 x 2.95 mm
Dimension:
98 x 60 x 14 mm
Interface:
8-Bit Parallel
Supply Voltage:
5 V
Operating Temperature:
-20 to +70 °C

IN STOCK: 512

Ships today, if you order in

Factory Lead-Time 15 Weeks

Price (CAD)

Qty
Unit Price
1
$41.943
5
$35.220
10
$33.061
25
$32.571
50
$31.360
100
$30.672
250 +
$30.519
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
