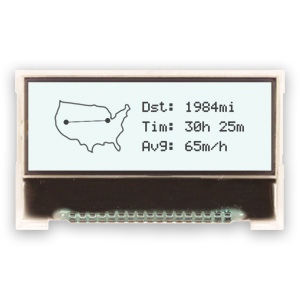

NHD-C12832A1Z-FSW-FBW-3V3 by newhaven display
Image is representational - see manufacturer specifications
Newhaven Display Authorized Distributor

NHD-C12832A1Z-FSW-FBW-3V3

Chip on Glass- Graphic - 128 x 32 Pixels - 3V - 4-Bit / SPI - Controller:ST-7032 - 17-Pin ...

View Datasheet Ask the Datasheet
RoHS Compliant
BULK Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The NHD-C12832A1Z-FSW-FBW-3V3 is a 128 x 32 Pixels Chip on Glass. It features a FSTN (+) Transflective Display with a White 3V Backlight. Character size is / mm. It uses an 4-Bit / SPI Interface. Voltage requirement is 3V. Controller required is the ST-7032

Search Keywords: NHDC12832A1ZFSWFBW3V3

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-C12832A1Z-FSW-FBW-3V3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BULK
Display Format:
128 x 32 Pixels
Resolution Standard:
N/A
LCD Type:
FSTN
Display Mode:
Transflective
Data Color:
Black
Background Color:
White
Backlight:
LED - White
Active Area:
31.98 x 7.98 mm
Dimension:
41.4 x 24.3 x 4.9 mm
Interface:
4-Bit / SPI
Supply Voltage:
3 V
Touchscreen:
No
Operating Temperature:
-20 to 70 °C

IN STOCK: 98

Can Ship immediately

Manufacturer Stock: 4,246   can ship 11/9/26

On Order: 2,500   can ship 12/3/26

Minimum Order Quantity: 5

Factory Lead-Time 18 Weeks can ship 3/1/27

Price (USD)

Qty
Unit Price
5
$11.23
25
$11.12
50
$11.04
100
$10.98
250
$10.96
500
$10.93
1,000 +
$10.90
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

NHDEVDEVELOPMENTBOARD

Evaluation Tool for Demonstrating OLEDs, TFTs, Character, Graphic, and COG
