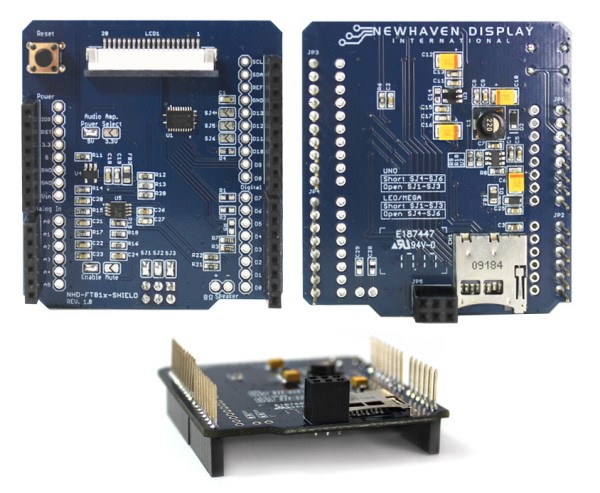

NHD-FT81X-SHIELD by newhaven display
Image is representational - see manufacturer specifications
Newhaven Display Authorized Distributor

NHD-FT81X-SHIELD

Arduino Shield to Interface all FT81x EVE2 TFT Modules

View Datasheet Ask the Datasheet
RoHS Compliant
BULK Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The NHD-FT81X-SHIELD is EVE2 display adapter LCD interfac for Arduino platform evaluation expansion board.

Search Keywords: NHDFT81XSHIELD

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-FT81X-SHIELD
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8531200020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BULK
Packaging Type:
Bulk/Tray/Box
Is Part RoHS Compliant:
Yes
Moisture Sensitivity Level (MSL):
Maintain in Room Temp.
Controller:
FTDI FT801
REACH Compliant?:
Yes
Voltage Supply:
5.0 V
Distribution 500:
16.60
Distribution 1K:
15.00
Distribution 10K:
9.95
DIstribution 100K:
8.75
CAGE CODE:
7XUK2
INTERNATIONAL HARMONIZE CODE:
8531.20.0020
NAFTA Compliant:
No
Distribution 50K:
9.15
Is Part STATIC Sensitive:
Yes
Is Dry Pack Required?:
No
Distribution 100:
19.80
Is Part LEAD(Pb) FREE:
Yes
Distribution 3K:
13.10
Operating Temp:
(-)20 ~ (+)70
Distribution 1-99:
21.90
Distribution 5K:
10.65
Interface:
SPI
Distribution 25K:
9.48
Connector Type:
Arduino Shield, 20-Pin 1.0mm FFC Bottom-Contact

IN STOCK: 0

On Order: 20   can ship 9/28/26

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1
$31.86
5
$30.72
10
$30.44
25
$30.22
50
$30.07
100
$29.99
250 +
$29.92
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
