XF3M-4515-1B by omron electronics

XF3M-4515-1B

Omron Electronics

Conn FFC/FPC Connector F 45 POS 0.5mm Solder RA SMD T/R ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The OMRON ELECTRONICS part XF3M-4515-1B is a high-quality connector designed to ensure reliable and secure connections in electronic applications. This compact FFC/FPC connector features 45 positions and a 0.5mm pitch, making it suitable for use with fine-pitch components. It is designed for surface-mounting applications and features a right-angle orientation, allowing for convenient and space-saving installations. This connector is solderable and comes in tape and reel packaging for ease of handling during assembly. With its excellent performance and durability, the XF3M-4515-1B is an ideal choice for demanding electronic design requirements.

Search Keywords: XF3M45151B

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Omron Electronics
Part No:
XF3M-4515-1B
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1500
Type:
FFC/FPC Connector
Number of Contacts:
45
Pitch:
0.5 mm
Mounting:
Surface Mount
Termination Method:
Solder
Maximum Voltage Rating:
50,50 VDC|VAC
Maximum Current Rating:
0.5 A
Dimension:
26.6mm x 6.4mm x 2 mm
Operating Temperature:
-30 to 85 °C
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 1,970

Ships today, if you order in

Minimum Order: 10

Price (CAD)

Qty
Unit Price
10
$2.603
100
$2.328
250
$2.266
500
$2.236
1,500
$2.175
3,000
$2.144
6,000
$2.113
7,500 +
$2.083
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

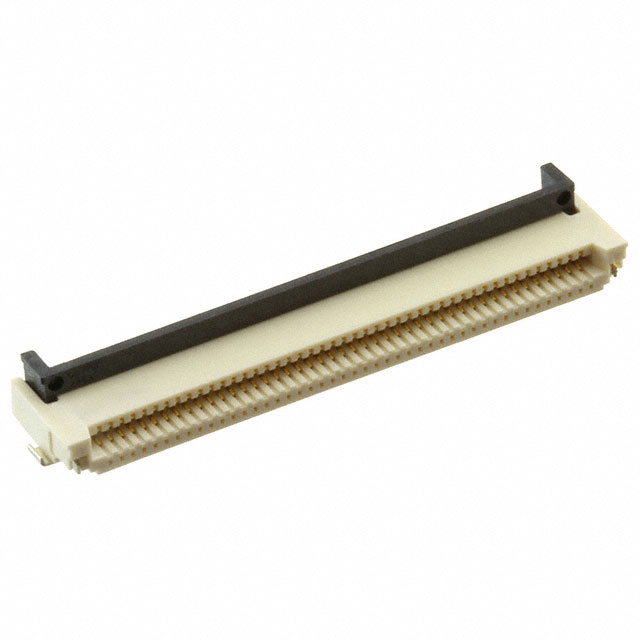

XF3M45151BBYOMZ
XF3M45151BBYOMZ
VIEW PRODUCT
