SZNUP2105LT1G by onsemi

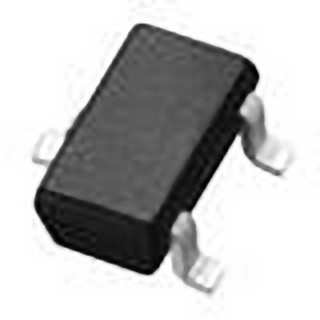

Image is representational - see mfr. specs

SZNUP2105LT1G

onsemi

The SZNUP2105LT1G is a dual-line, bidirectional ESD protection diode in a SOT-23 package designed to protect CAN bus transceivers. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The SZNUP2105LT1G is a dual bidirectional voltage suppressor designed to protect CAN transceivers in high-speed and fault-tolerant networks from ESD and other harmful transient voltage events. It provides robust protection with a reverse working voltage of 24 V, a peak power dissipation of 350 W per line (8/20 µs waveform), and low reverse leakage current of less than 100 nA. Housed in a compact SOT-23 package, this device features low capacitance to support high-speed CAN data rates. As an AEC-Q101 qualified and PPAP capable component, it is ideal for automotive networks, industrial control systems, and other applications requiring high reliability and stringent EMI compliance.

Search Keywords: SZNUP2105LT1G

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
onsemi
Part No:
SZNUP2105LT1G
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541100050
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3000
  Different packaging options available.  See Alternatives

IN STOCK: 42,000

Can Ship immediately

On Order: 120,000   can ship 8/14/26

Minimum Order Quantity: 3000

Multiple: 3000

Factory Lead-Time 41 Weeks

Price (USD)

Qty
Unit Price
3,000
$0.0820
6,000
$0.0741
9,000
$0.0674
12,000
$0.0672
27,000
$0.0671
51,000
$0.0668
102,000
$0.0666
150,000 +
$0.0665
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
