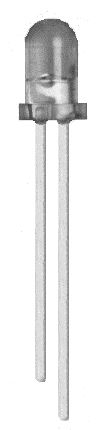

OP505A by optek technology/tt electronics

OP505A

Optek Technology/TT Electronics

NPN Si Phototransistor - 850-1000nm - 20° FOV - 100nA Dark Current - 30V Breakdown - T1 (3mm) Package ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The OPTEK TECHNOLOGY part OP505A is an NPN Si Phototransistor designed for applications that require reliable and accurate light detection. It operates in the 850-1000nm wavelength range, making it suitable for various light sensing applications. With a wide 20° field of view, it can effectively detect light from different angles. The OP505A features a low dark current of 100nA, ensuring accurate readings even in low-light conditions. It also has a high breakdown voltage of 30V, making it resilient to voltage fluctuations and surges. Enclosed in a T1 (3mm) package, this phototransistor is easy to integrate into your existing circuits or designs. Its compact size makes it suitable for space-constrained applications, while still offering excellent performance.

Search Keywords: OP505A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Optek Technology/TT Electronics
Part No:
OP505A
RoHS:
Yes
HTS:
8541497080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2000
Package Type:
Bag

IN STOCK: 1,367

Ships today, if you order in

On Order: 2,000   can ship 3/2/26

Minimum Order: 25

Factory Lead-Time 22 Weeks

Price (USD)

Qty
Unit Price
25
$0.848
250
$0.678
500
$0.646
2,000
$0.639
4,000
$0.634
6,000
$0.631
8,000
$0.628
16,000 +
$0.625
Suppliers Standard Package
Log in for special pricing
Click for Quote
