ACV31212 by panasonic electronic components

ACV31212

Panasonic Electronic Components

Relays 12VDC 142.3Ohm 20A SPST-NO (22.5mm 15mm 15.7mm) Plug-In Automotive Relay Automotive

Datasheet
RoHS Compliant
Tube Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Relays 12VDC 142.3Ohm 20A SPST-NO (22.5mm 15mm 15.7mm) Plug-In Automotive Relay Automotive

Search Keywords: ACV31212

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
ACV31212
RoHS:
Yes
HTS:
8536410050
COO:
JP
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Tube
Contact Form:
SPST-NO (1 Form A)
Relay Construction:
Non-Latching
Max Contact Current:
20A
Coil Voltage:
12 VDC
Coil Current:
84 mA
Coil Resistance:
142.3 Ohm
Contact Material:
Silver(Cadmium Free)
Must Operate Voltage:
7 VDC
Must Release Voltage:
0.6 VDC
Operate Time:
10 ms
Seal:
Sealed
Mounting:
Connector
Termination Style:
0.25 Quick Connect / Solder
Dimension:
22.5 x 15 x 15.7 mm
Operating Temperature:
-40 to 85 °C
Packaging:
Tube
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

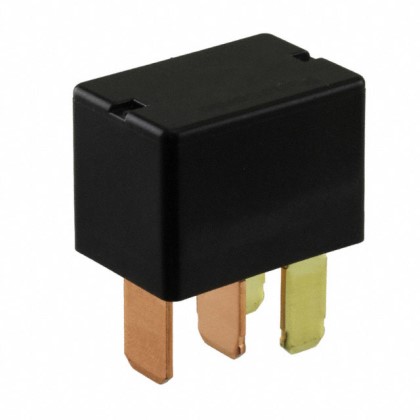

RECOMMENDED REPLACEMENT
ACVN51212
