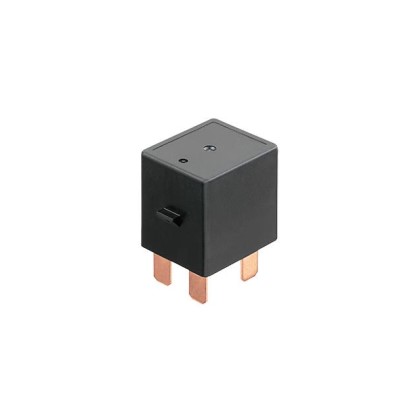

AECN11012
AECN11012

In Stock: 94

Minimum Order: 1

VIEW PRODUCT
AEV110122 by panasonic electronic components
Image is representational - see mfr. specs

AEV110122

Panasonic Electronic Components

Relays 12VDC 116.5Ohm 10A SPST-NO(66.8x37.9x49.7)mm Flange Compact Relay Automotive ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

AEV110122 is a compact and lightweight EV relay designed for high DC voltage switching applications in electric vehicles, hybrid vehicles, fuel-cell vehicles, and battery charge/discharge systems. It features a 10A contact rating with 1 Form A contact arrangement, a 12V DC nominal coil voltage, and a hydrogen gas-sealed capsule contact mechanism that provides high arc cooling capacity and prevents contact oxidation. The relay offers a nominal switching capacity of 10A at 400V DC, with a pick-up voltage of max. 9V DC and drop-out voltage of min. 1V DC. With a nominal operating current of 0.103A and operating power of 1.24W, this relay provides high contact reliability and dustproof construction, making it ideal for demanding automotive and industrial high-voltage DC applications.

Search Keywords: AEV110122

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
AEV110122
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPST-NO
Maximum Current Rating:
10 A
Mounting:
Flange Mount
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 80 °C
Coil Resistance:
116.5 Ohm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 134

Ships today, if you order in

Price (USD)

Qty
Unit Price
1
$76.35
5
$74.83
7
$73.34
13
$71.86
19
$70.43
25 +
$69.02
Log in for special pricing Click for Quote Price Match Request
