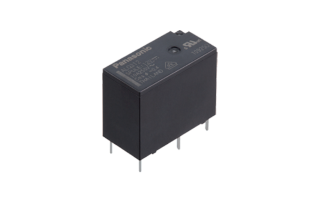

ALQ305 by panasonic electronic components

ALQ305

Panasonic Electronic Components

Power Relay 5VDC 5DC/10AAC SPST-NO(20x10x16)mm THT ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT part ALQ305 is a compact and reliable power relay designed for various electronic applications. This relay operates at 5VDC and has a contact rating of 5DC/10AAC, making it suitable for both low voltage DC and high voltage AC circuits. Its construction includes a single pole, single throw normally open configuration (SPST-NO), which means it can switch one circuit on or off. With dimensions of 20x10x16mm, this through-hole mountable relay can easily be incorporated into any PCB design or assembly. Whether it's used in industrial automation, telecommunications, or automotive electronics, the ALQ305 provides efficient and durable performance.

Search Keywords: ALQ305

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
ALQ305
RoHS:
Yes
HTS:
8536410020
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
SPST-NO10703
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 85 °C
Coil Resistance:
125 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 6,900

Can Ship immediately

Minimum Order: 100

Multiple: 100

Factory Lead-Time 16 Weeks

Price (CAD)

Qty
Unit Price
100
$1.406
300
$1.311
500
$1.277
1,000
$1.228
2,500
$1.222
5,000
$1.131
7,500
$1.127
10,000 +
$1.121
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
Older Equivalent
JS1A-5V-F
JS1A-5V-F
VIEW PRODUCT
