JS1-B-12V-F by panasonic electronic components

JS1-B-12V-F

Panasonic Electronic Components

Power Relay 12VDC 5DC/10AAC SPDT(22x16x16.4)mm THT ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT part JS1-B-12V-F is a compact and reliable power relay with a coil voltage of 12VDC. It is capable of handling a current of 5DC and 10AAC. This Single Pole Double Throw (SPDT) relay has a compact size of 22x16x16.4mm, making it suitable for various applications where space is limited. It is designed for Through-Hole Technology (THT) mounting, ensuring easy installation and secure connection. This power relay offers reliable performance and is ideal for use in a wide range of electronic devices and industrial applications.

Search Keywords: JS1B12VF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JS1-B-12V-F
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BOX
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPDT
Maximum Current Rating:
10
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
400 Ohm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 9,300

Ships today, if you order in

Minimum Order: 100

Multiple: 100

Price (CAD)

Qty
Unit Price
100
$3.048
200
$2.681
500
$2.358
1,000
$2.129
2,000 +
$1.852
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

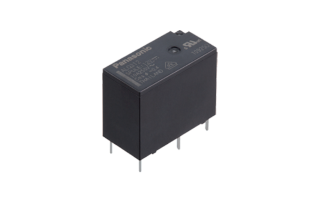

RECOMMENDED REPLACEMENT
ALQ112
ALQ112
VIEW PRODUCT
