NF2EB-48V by panasonic electronic components

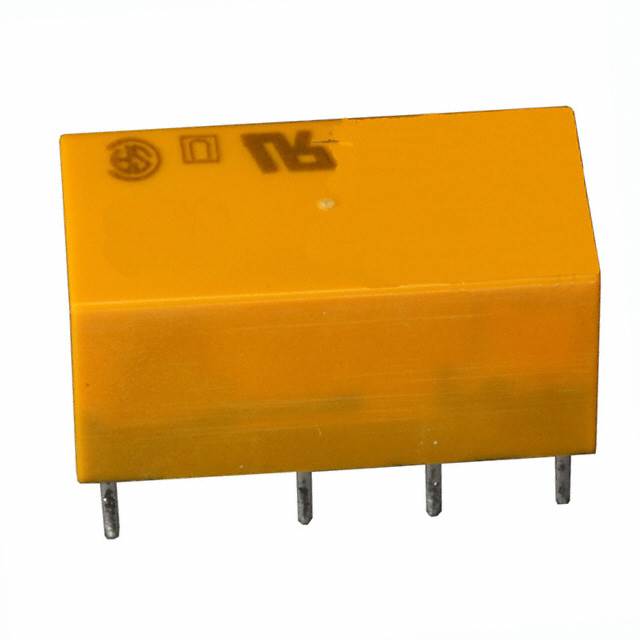

Image is representational - see mfr. specs

NF2EB-48V

Panasonic Electronic Components

Electromechanical Relay 48VDC 7KOhm 2A DPDT (30.2x20x11.1)mm THT Flat Pack Relay ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Discontinued
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

NF2EB-48V is a flatpack relay featuring a 2 Form C contact arrangement with a 48V DC nominal coil voltage. It offers a coil resistance of 7,000 , nominal operating power of 330 mW, and inductance of 4.12 H (armature open) to 4.18 H (armature close). The ry["Nominal Coil Voltage: 48V DC","Pick-up Voltage: 38.4V DC (max.)","Drop-out Voltage: 4.8V DC (min.)","Max. Allowable Voltage: 84V DC (at 40°C)","Coil Resistance: 7,000 (±15%)","Nominal Operating Power: 330 mW","Inductance: 4.12 H (open) / 4.18 H (close)RELAYSELECTROMECHANICAL RE

Search Keywords: NF2EB48V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
NF2EB-48V
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Bulk
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
48 V
Contact Arrangement:
DPDT
Maximum Current Rating:
2 A
Mounting:
Through Hole
Operating Temperature:
-40 to 65 °C
Dimension:
30.2 x 20 x 11.1 mm
Termination Style:
PC Pin
Coil Current:
6.86 mA
Contact Form:
2 Form C
Life Cycle:
Discontinued
  This product is discontinued, but still in stock
  Possible Replacement options available.  See Alternatives

IN STOCK: 38

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$149.59
5
$58.58
10 +
$52.90
Log in for special pricing Click for Quote Price Match Request
