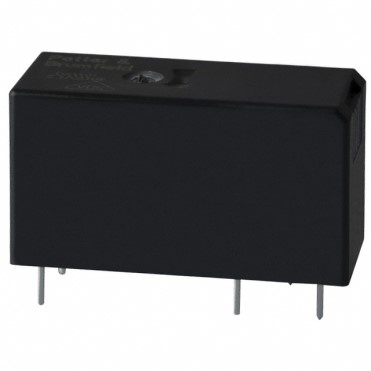

TX2SA-5V by panasonic electronic components

TX2SA-5V

Panasonic Electronic Components

Signal Relay 5VDC 2A DPDT( (15mm 9.4mm 8.4mm)) SMD Medical ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT TX2SA-5V is a high-quality signal relay that is specifically designed for medical applications. It is a DPDT (Double Pole Double Throw) relay that operates at 5V DC and can handle a maximum current of 2A. This SMD (Surface Mount Device) relay has compact dimensions of 15mm x 9.4mm x 8.4mm, making it suitable for space-constrained applications. With its reliable performance and compatibility with medical equipment, the TX2SA-5V is an ideal choice for professionals in the medical industry.

Search Keywords: TX2SA5V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
TX2SA-5V
RoHS:
Yes
HTS:
8536410020
COO:
JP
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
DPDT
Maximum Current Rating:
2 A
Mounting:
Surface Mount
Operating Temperature:
-40 to 85 °C
Dimension:
15 x 9.4 x 8.2 mm
Termination Style:
Gull Wing
Coil Current:
28.1 mA
Contact Form:
2 Form C
  Different packaging options available.  See Alternatives
  Possible Replacement options available.  See Alternatives

IN STOCK: 7,817

Ships today, if you order in

Minimum Order: 40

Multiple: 40

Factory Lead-Time 18 Weeks

Price (CAD)

Qty
Unit Price
40
$2.236
80
$2.221
160
$2.159
320
$2.098
500
$2.068
1,000 +
$1.899
Suppliers Standard Package
Log in for special pricing
Click for Quote
