DPH-103-R by panasonic / sunx
Image is representational - see manufacturer specifications
PANASONIC / SUNX Authorized Distributor

DPH-103-R

The DPH-103-R is a head-separated vacuum pressure sensor head for measuring gauge pressure in air and non-corrosive gases. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The DPH-103-R is a head-separated vacuum pressure sensor head designed to measure gauge pressure within a rated range of 0 to –101.0 kPa. It operates on a 12 to 24 V DC supply and is suitable for use with air and other non-corrosive gases, featuring a pressure withstandability of 500 kPa. This model is equipped with a flexible, oil-resistant cabtyre cable for durable and versatile installations. The sensor is constructed with a stainless steel (SUS303) pressure port and a silicon diaphragm pressure element. Designed for industrial environments, it functions reliably within an ambient temperature range of 0 to +50 °C.

Search Keywords: DPH103R

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
PANASONIC / SUNX
Part No:
DPH-103-R
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
902620190
COO:
JP
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Media:
Air,Gas
Output Voltage:
1 to 5 V
Mounting:
Panel
Operating Temperature:
0 to 50 °C
Dimension:
28.2 x 13.2 x 23 mm
Device Pressure Type:
Vacuum Gage
Operating Pressure Range:
0 to 101 kPa
Accuracy:
±0.5 %
Typical Operating Supply Voltage:
12 to 24 V
Response Time:
Selectable
Electrical Termination:
Connector

IN STOCK: 10

Can Ship immediately

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$132.63
5
$107.05
10
$103.02
20
$99.77
50
$99.52
100 +
$99.26
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

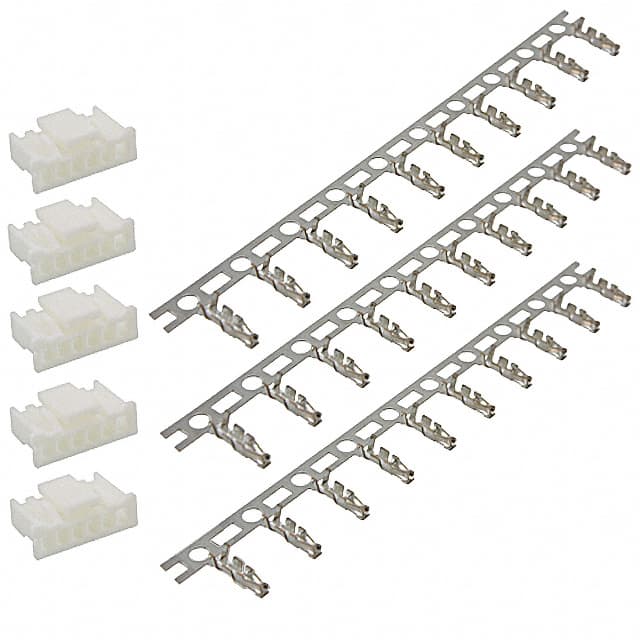

CN-66A

6-core Connector 5 connectors per box

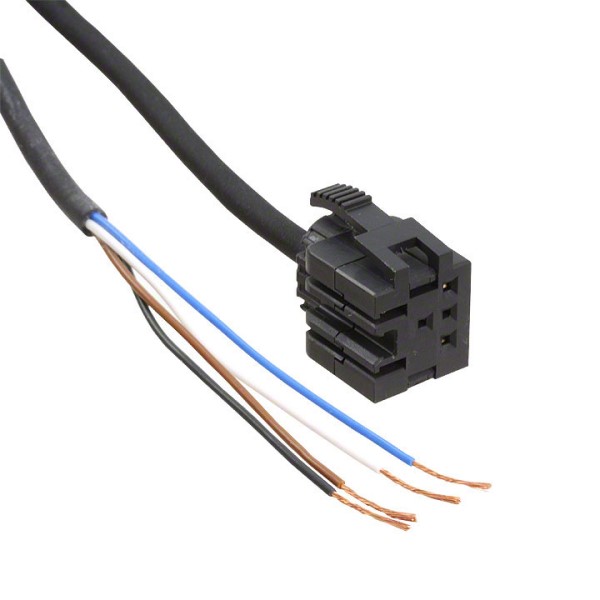

CN-74-C5

Quick connection - main 4 core cable - 5m length - Panasonic / SunX (CN)

CN-72-C1

QD CONNECTOR WITH 1M SUB C

CN-EP1

Connector, Including 5 Pieces | Panasonic Industrial Automation CN-EP1

MS-DIN-2

Amplifier - Mounting Bracket

MS-DP1-2

Mounting Bracket - Panel Mount - DP 100 Series Sensors

CN-66A-C2

6-core. 2M Cable for DPC Controller

CN-66A-C5

6-core. 5M Cable for DPC Controller

CN-72-C2

QD CONNECTOR WITH 2 M SUB CABLE

CN-72-C5

QD CONNECTOR WITH 5 M SUB

CN-74-C1

Cordset; QD Connector With 1m Main Cable

CN-74-C2

Cable Assembly Power 2m Power 4 POS F

CN-EP2

Conn Hook Up Connector

MS-DP1-3

Front Protection Cover For DP-100.

Show 12 More
