EQ-501T by panasonic / sunx
Image is representational - see manufacturer specifications
PANASONIC / SUNX Authorized Distributor

EQ-501T

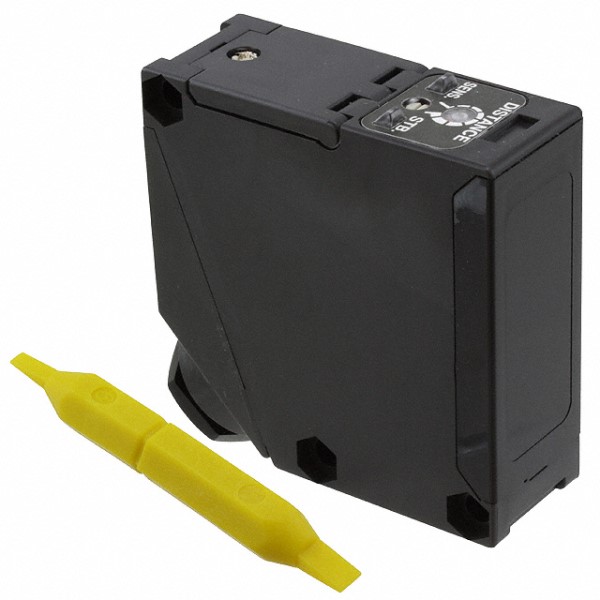

Photoelectric Sensor - EQ-500 Series - Adjustable - Timer - Reflective - 2.5m - Relay - 240Vac/dc ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

ADJUSTABLE RANGE REFLECTIVE PHOTOELECTRIC SENSOR Sensing Method Reflective Sensing Distance 3.937" ~ 98.425" (100mm ~ 2.5m) ADJ Voltage - Supply 12V ~ 240V, 24V ~ 240V Response Time 20ms Output Configuration Relay - Dark-ON/Light-ON - Selectable Connection Method Cable Ingress Protection IP67 Light Source Infrared Adjustment Type Adjustable Operating Temperature -20°C ~ 55°C

Search Keywords: EQ501T

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
PANASONIC / SUNX
Part No:
EQ-501T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650900
COO:
TH
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Type:
Reflective
Maximum Sensing Distance:
2.5 m
Output Type:
Relay
Maximum Response time:
20 ms
Minimum Operating Supply Voltage:
12,12 VAC|VDC
Maximum Operating Supply Voltage:
240,240 VAC|VDC
Operating Temperature:
-20 to 55 °C
Terminal Type:
Wire Lead
Dimension:
26 x 68 x 68 mm
Mounting:
Screw

IN STOCK: 3

Ships today, if you order in

On Order: 10   can ship 12/24/26

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$193.00
5
$189.84
10
$188.91
20
$188.45
50
$187.98
100 +
$187.50
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

MS-EQ5-01

Long Angle Mounting Bracket, Slotted
