PM2-LL10 by panasonic / sunx
Image is representational - see mfr. specs

PM2-LL10

PANASONIC / SUNX

The PM2-LL10 is an L-type, top-sensing convergent reflective micro photoelectric sensor with a built-in amplifier and Light-ON operation. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PM2-LL10 is a convergent reflective micro photoelectric sensor designed for stable object detection within a limited area. This L-type, top-sensing model features a sensing range of 2.5 to 8 mm, with a convergent point at 5 mm, and operates on a 5 to 24 V DC supply. It provides a Light-ON NPN open-collector transistor output with a fast response time of 0.8 ms or less and can detect minute objects as small as a ø0.05 mm copper wire. The sensor's design makes it highly resistant to background interference, ensuring reliable performance for applications such as positioning printed circuit boards or confirming the passage of small components.

Search Keywords: PM2LL10

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
PANASONIC / SUNX
Part No:
PM2-LL10
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650900
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Convergent-Reflective
Maximum Sensing Distance:
0.008 m
Output Type:
NPN Open Collector
Maximum Response time:
0.8 ms
Minimum Operating Supply Voltage:
5 VDC
Maximum Operating Supply Voltage:
24 VDC
Operating Temperature:
-10 to 55 °C
Terminal Type:
N/A
Dimension:
14.4 x 14 x 39 mm
Mounting:
Screw

IN STOCK: 0

On Order: 35   can ship 6/11/26

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$40.36
5
$38.94
10
$35.06
25
$34.89
50
$34.71
100
$34.54
250 +
$34.36
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

CN-13

Conn Sensor Connector M 3 POS 2.54mm ST

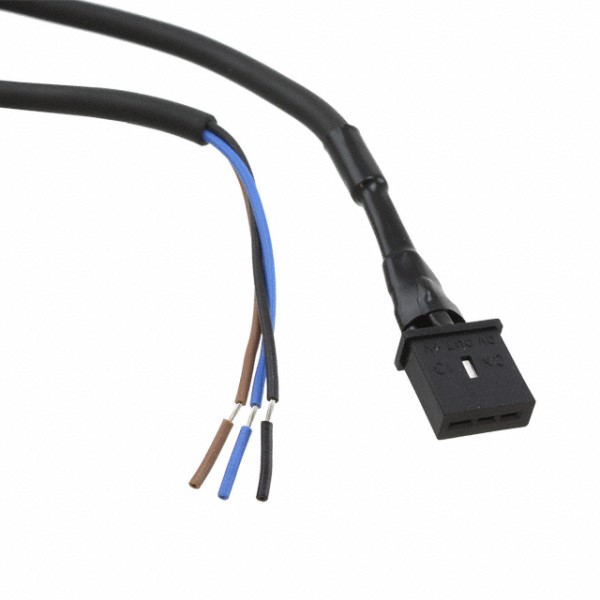

CN-13-C1

SENSOR CABLE - 3 POSITION - STRAIGHT

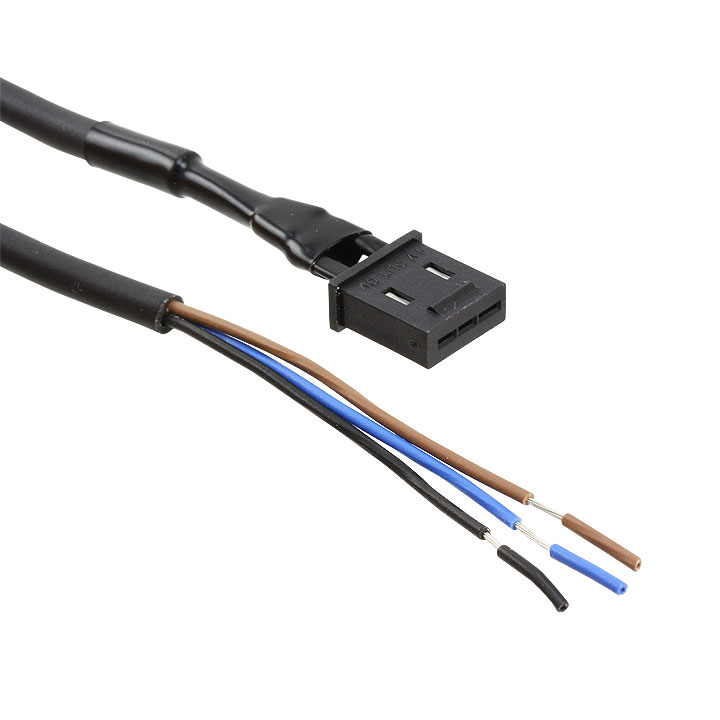

CN-13-C3

SENSOR CABLE - 3 POSITION - STRAIGHT

Show 1 More
